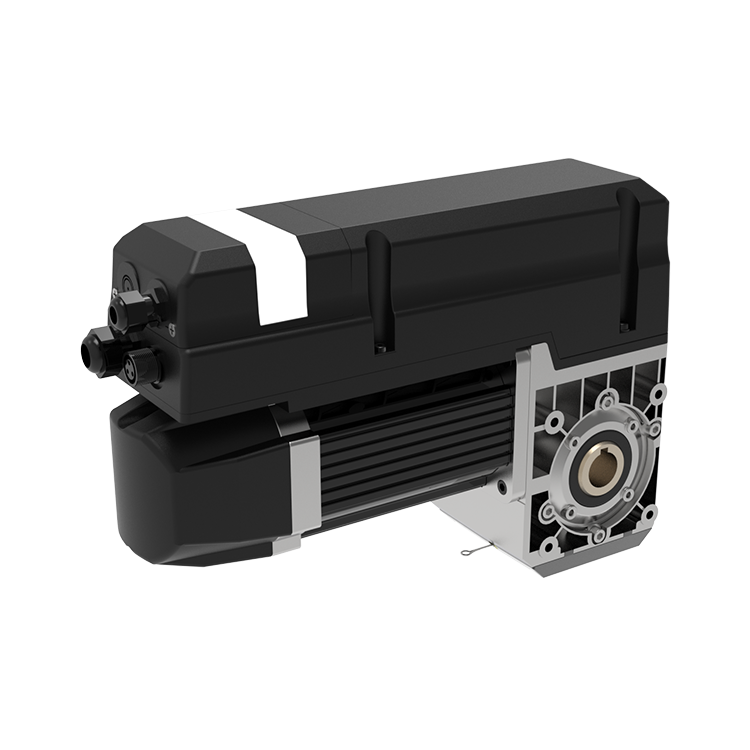

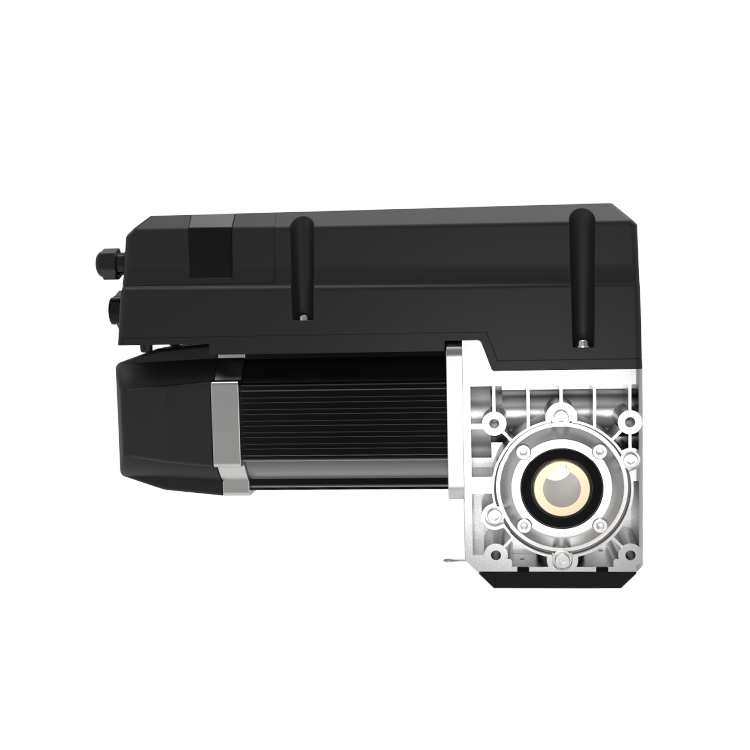

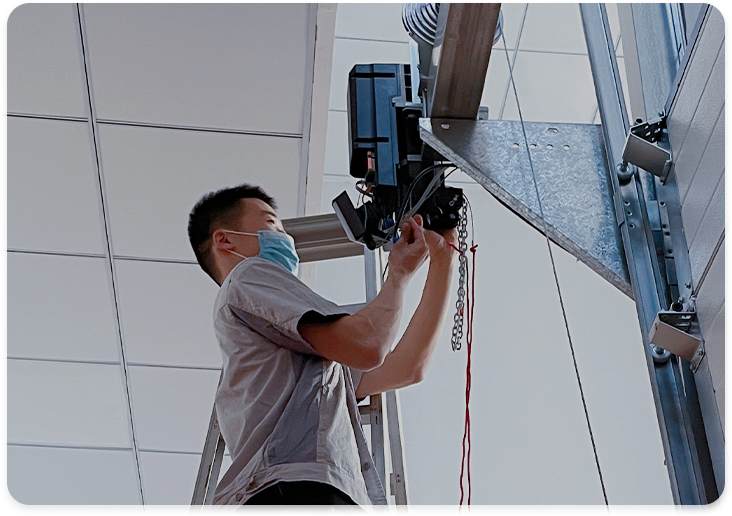

BASE 50 Industrial Door Drive

Force Door DC series industrial door operator is based on DC technology which is much safer for

the installers and end users. Besides, convenient installation provides a better choice for door

manufacturers and installers.

Recommendation:door size & weight

Standard lifting

Size & Weight

- Up To 24 M²

- Up To 312Kgs

High Lifting

Size & Weight

- Up To 24 M²

- Up To 312Kgs

Vertical lifting

Size & Weight

- Up To 20 M²

- Up To 260Kgs

PARAMETER

Max. opening speed	50Nm
Max. door height	35Nm
Input voltage	110/220(1+10%)V 50Hz
Control system	24V DC
Input voltage	0.45KW
Static holding torque		400Nm
Max. output speed		24rpm - 32rpm
Operation limit turns (limit travel)		15 turns of output shaft (max. 5.0m lifting height recommend)
Sleeve shaft diameter (standard)		Φ25.4mm
Keyway size		6.3mm
Thermal protection temperature		105℃
Continuous sound pressure level		＜70DB
Max. cycles per hour		20
IP protection class		IP54
Temperature range		- 20℃ ~ + 60℃

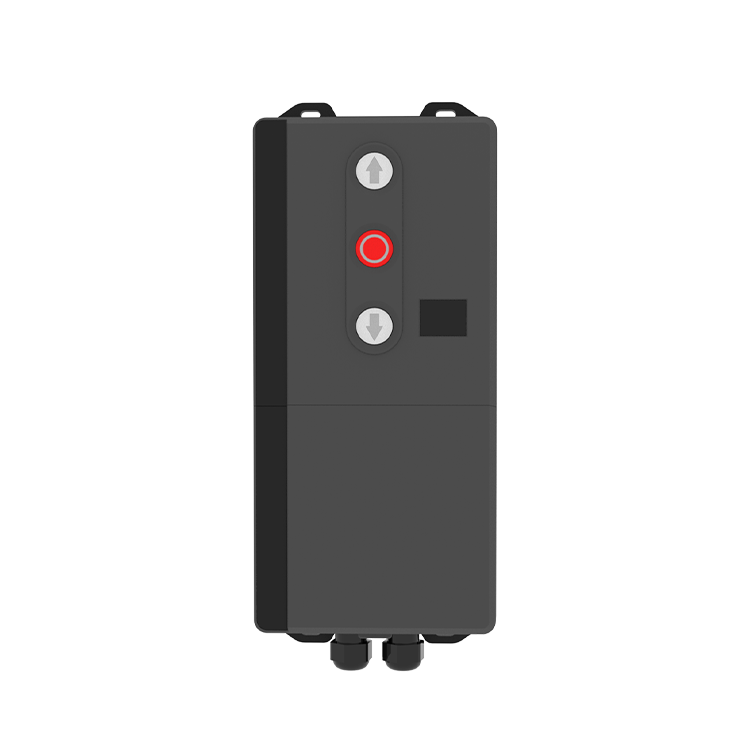

Standard kit		Drive motor & push button or TX/RX control
Quick release with rope		Including
Chain hoist module		Optional
Optional edge sensors kit		Optional

RECOMMENDED ACCESSORIES

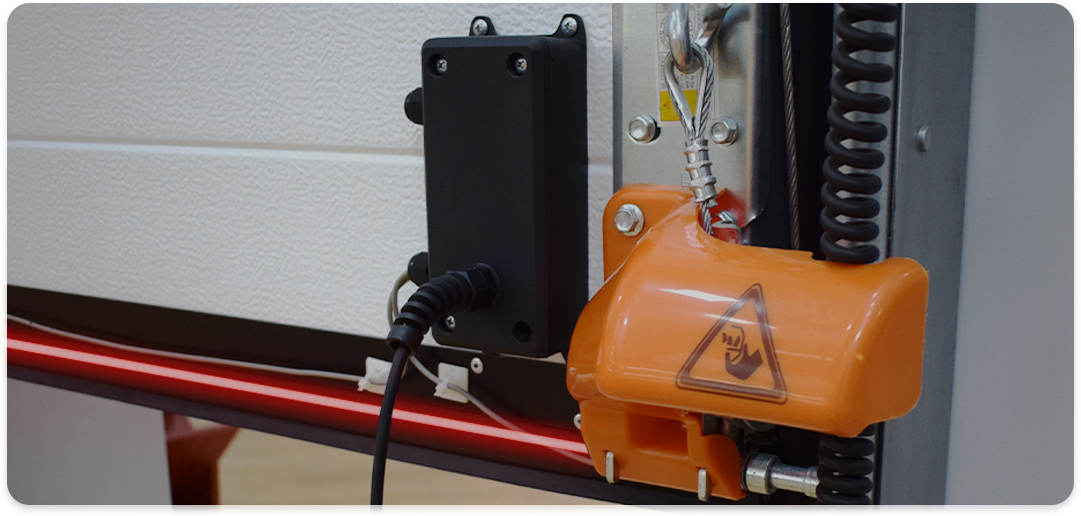

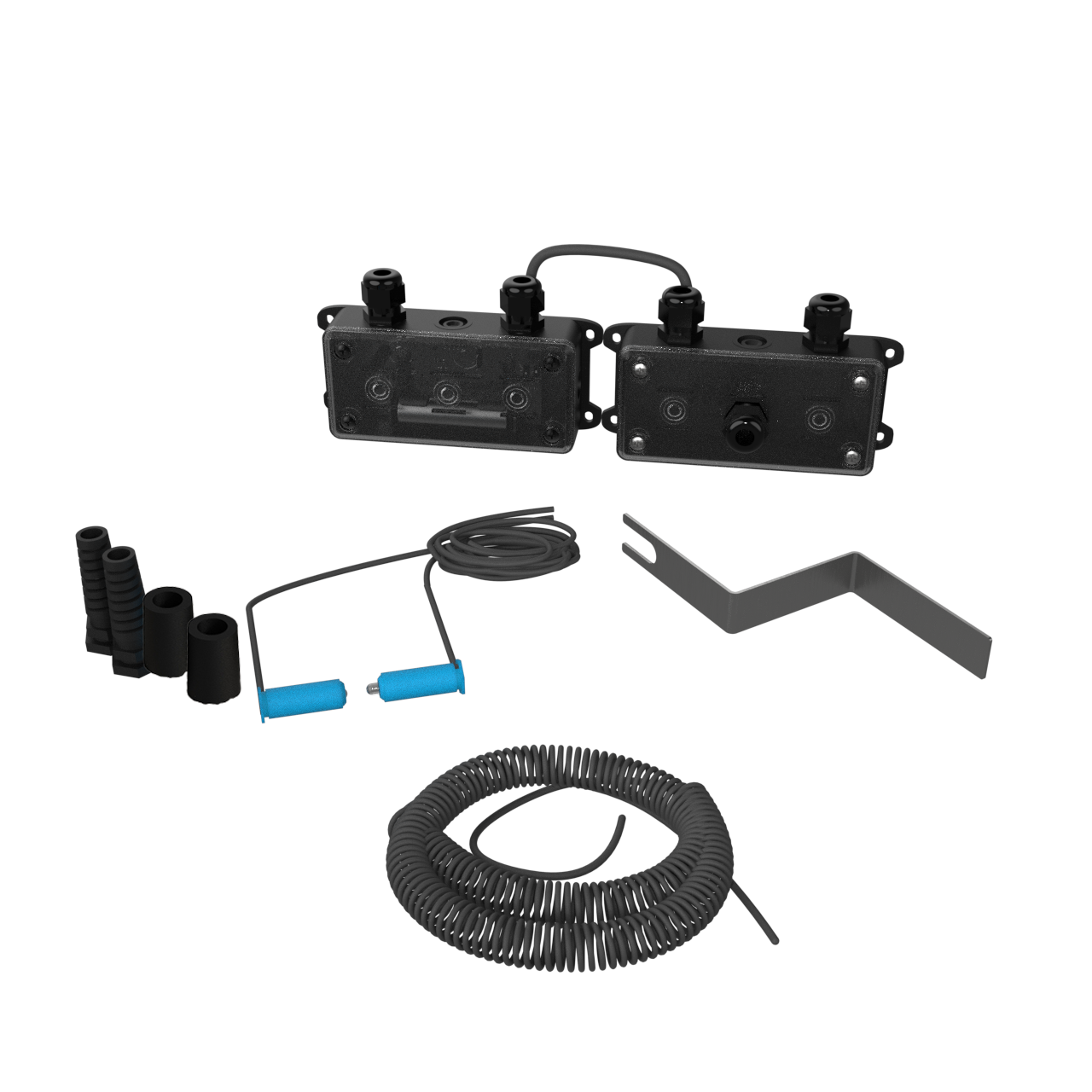

Wired optical safety edge kit

Optical safety edge with 5 wires spring cable for industrial doors

Voltage: DC12-24V

Power consumption: Below 6mA

Detection distance: 0.5m-10m

Error distance: Less than 10% of detection distance

Detect object: Translucent/Non-transparent ojects

Physical dimension: 37*13mm

IP grade: IP67

Operating temperature: -20℃ - +70℃

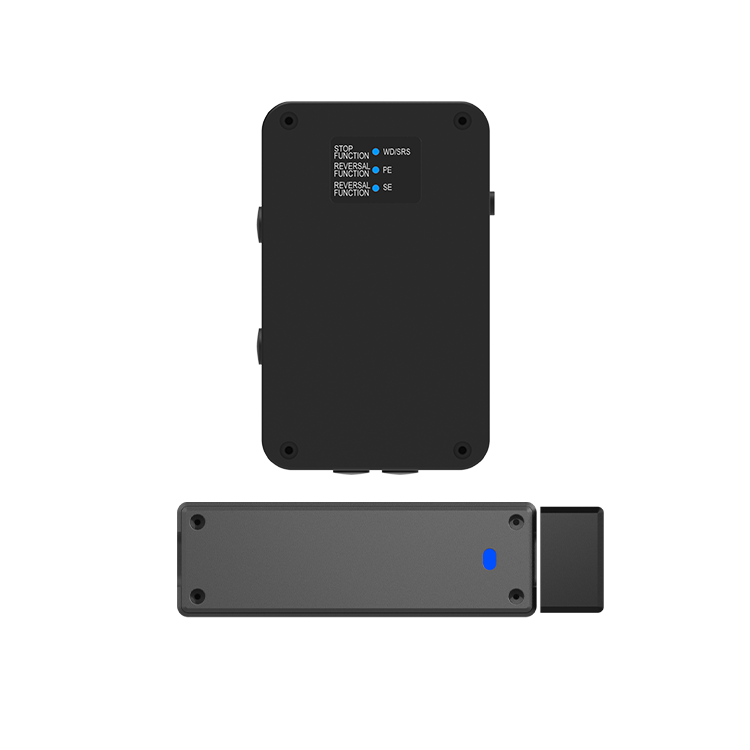

Wicket Door Switch Kit

For wicket door

trio-frequency technology for anti-interference

Magnetic sensor, contact-free magnetic detector

Height adjustable mounting base for the various wicket door frame

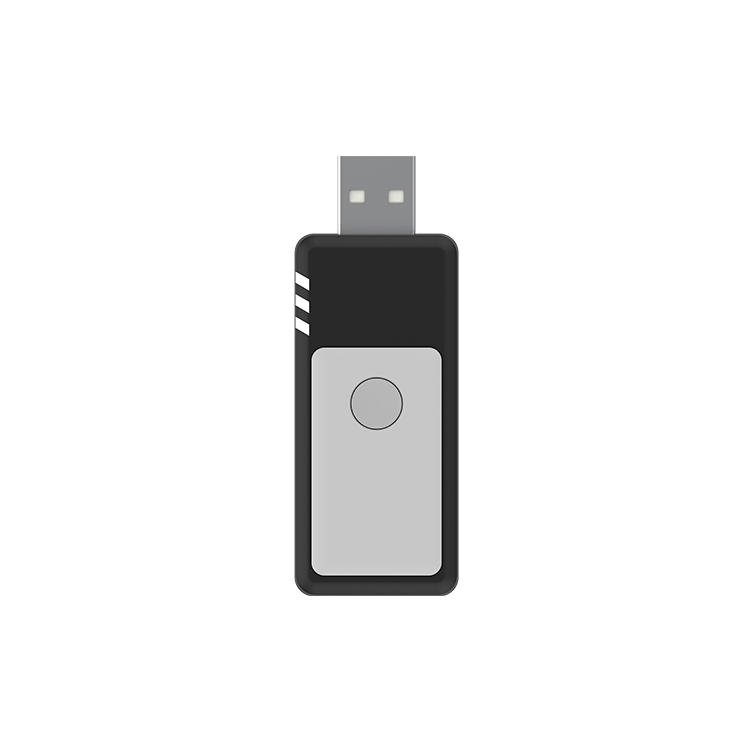

USB WIFI MODULE

New F-linX APP with nice UI design

Most of the basic function settings included

Powerful security center

Interactive communication platform in the future

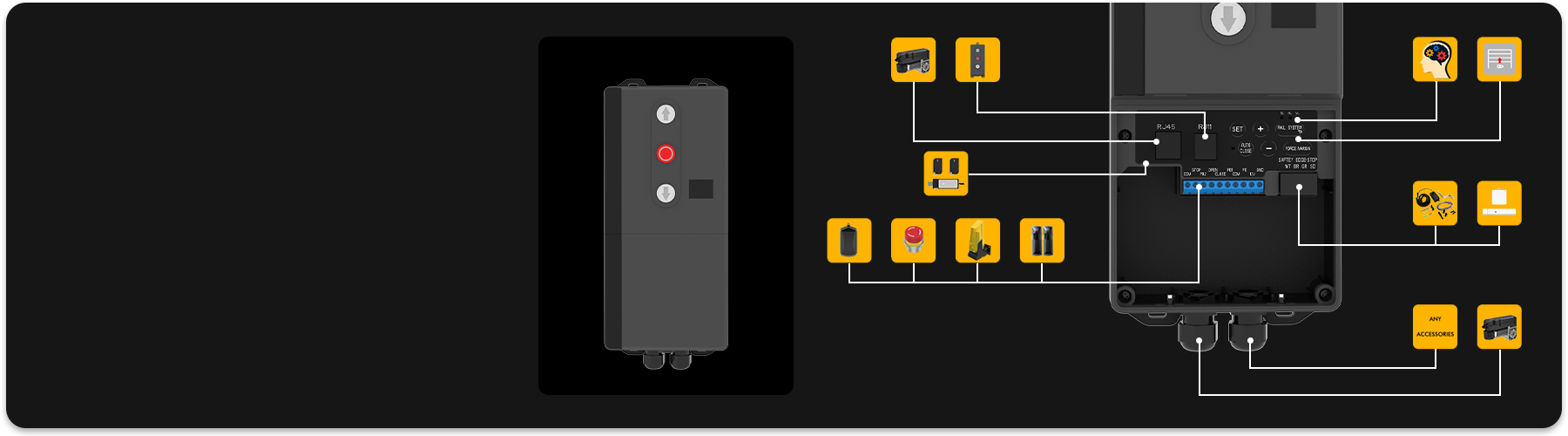

Mulit-terminal Port Compatibility
Allow all kinds of accessories connection, for example the control
device, safety device and work with various access systems.
Multiple Installation Methods
Support horizontal or vertical installation
Innovated "AAS" Smart System
"AAS" (auto adaptive system) allow the industrial door opener
will automatc identify the door condition to define a best
program for its "OPEN/ CLOSE speed", "Soft start/ Soft stop
ranges“ and the certain ”force sensitivity".
Optical Safety Edge
Additional safety device applicability for eletrical safety edge (use 8.2k resistor withput self test), optical safety edge, DW (use 8.2k resistir for self test).
Support Built-in Photo Beam & Built-in Light Curtain
1. Support multiple installation ways
2. Cost effective for end users
