Wireless photo beam

F-BEAM-MINI

Home / SMART & SAFETY SYSTEMS / Wireless Safety system / F-BEAM
F-BEAM-MINI
Parameter:

Receiver

Radio technology:                              Trio-Frequency technology

Frequency:                                         Multi from 409.025 MHz – 458.4 MHz

Signal modulation:                             FSK

Signal range:                                     20 meters

Power supply:                                   AC/DC 12-24V

IP grade:                                            IP 65

Operating temperature:                    -20°C ~ +60°C

Radio technology:                              Trio-Frequency technology

Transmitter for wireless photo beam(F-PE)

Frequency:                                         Multi from 409.025 MHz - 458.4 MHz

Signal modulation:                             FSK

Signal range:                                      20 meters(Indoor or Outdoor)

Power supply:                                    3.6V DC(2 x 3.6V lithium battery for both TX beam and RX beam)

Battery capacity:                                2600 mAh

Adjustable Angle for Tx and Rx:         Horizontally (-90° ~ +90°)

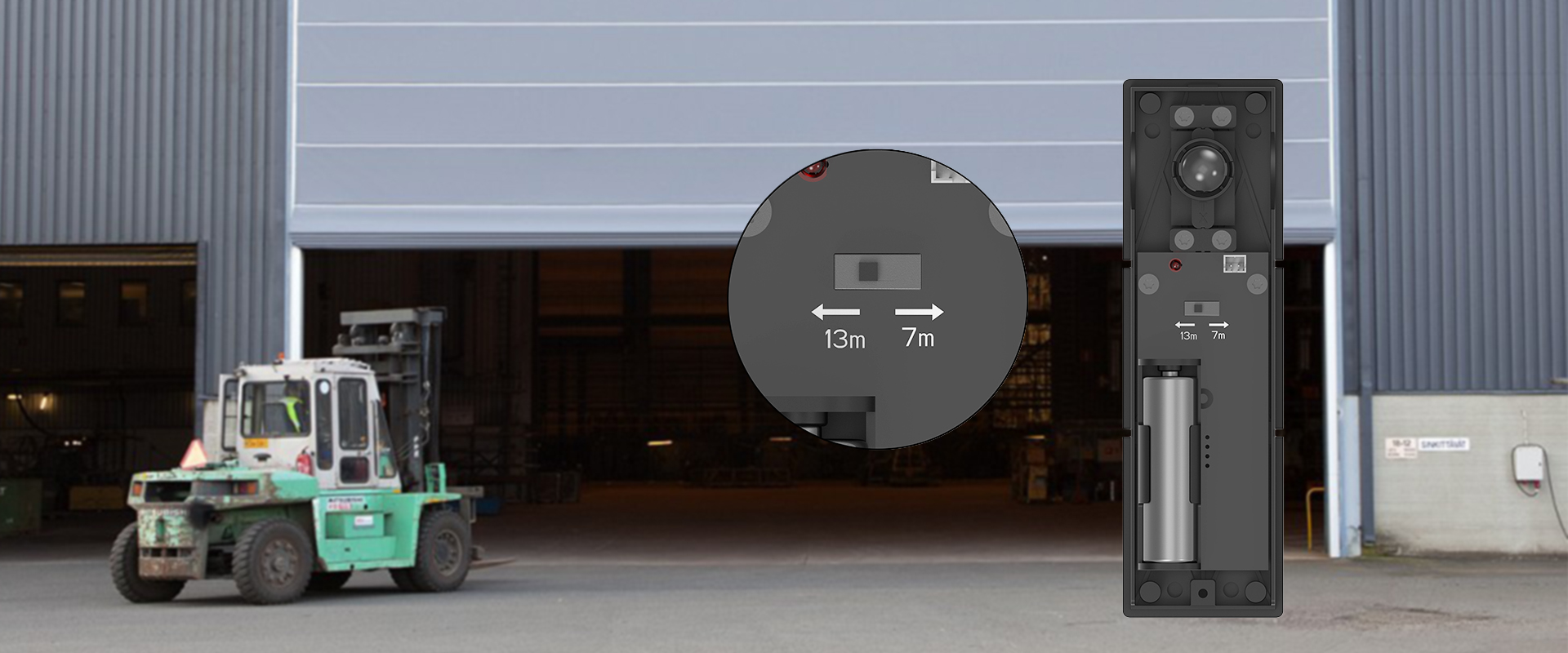

Operating consumption:                     7 meters - 60uA

                                                           13 meters - 100uA

RX consumption:                                Operation - 5.3mA

                                                            Standby - 60uA

IP grade:                                             IP 54

Operating temperature:                      -20°C ~ +70°C



Technology & Standards

RED Directive 2014/53/EU

Machine Directive 2006/42/EC

EMC Directive 2014/30/EU
