Detection Height: Max. 2520 mm
Beam Spacing: Minimum detectable object diameter 50 mm (varies by model)
Aperture Angle: Transmitter ≤ ±10° , Receiver ≤ ±10°
Anti-light Intensity: ≥ 100,000 Lux
Maximum Door Speed: 1.3 m/s
Protection Rating: IP67
Operating temperature: -20°C ~ +60°C
Housing Material: Anodized Aluminum
Helpful links
Technical Specifications and Info Video
Mechanical Installation and User Guide
Criss-cross beams.
Waterproof housing (IP67) and very high light reserve make the GridScan/Mini insensitive to dust, dirt and water.
Electrical synchronization for increased light and strobe immunity.
FSS version fulfills SIL 2 without testing

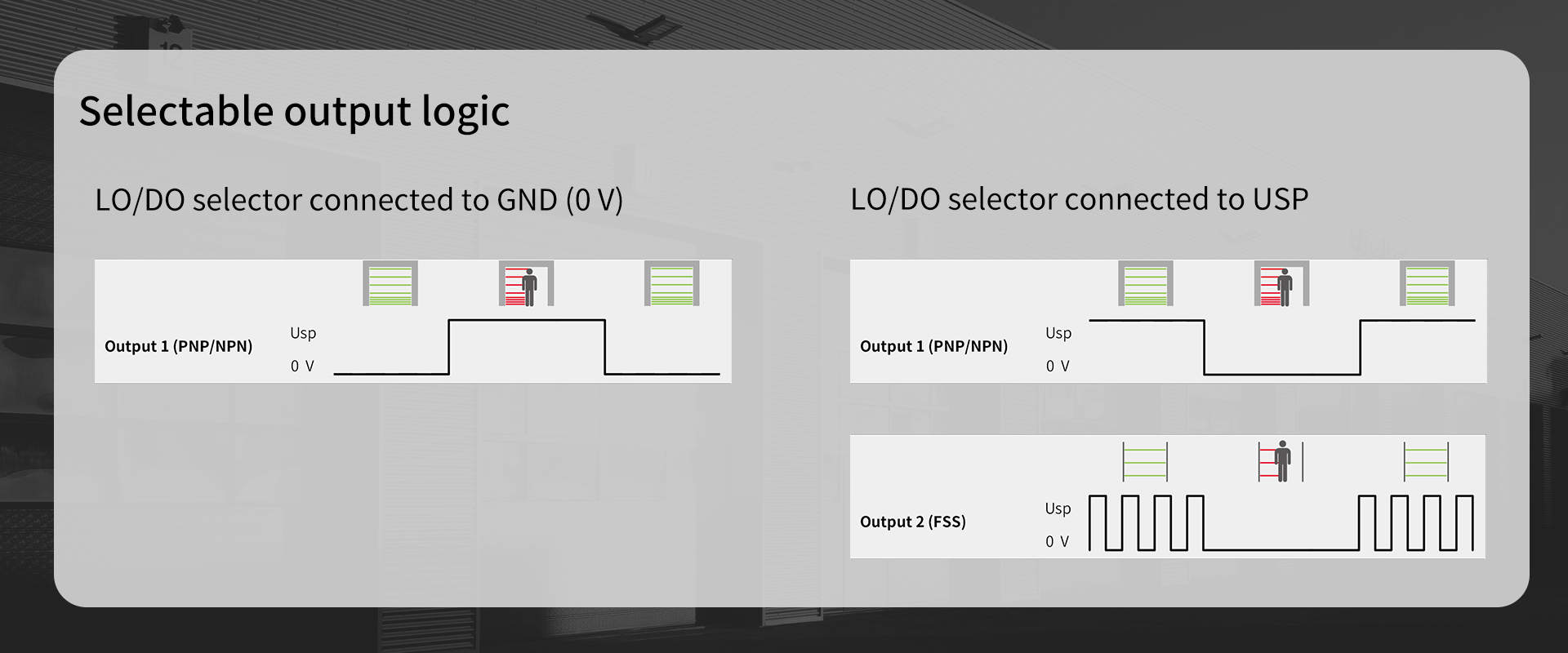

Short-circuit proof semiconductor output PNP/NPN (push-pull) and FSS output
BRING A SAFER EFFECT ON THE DOORS
