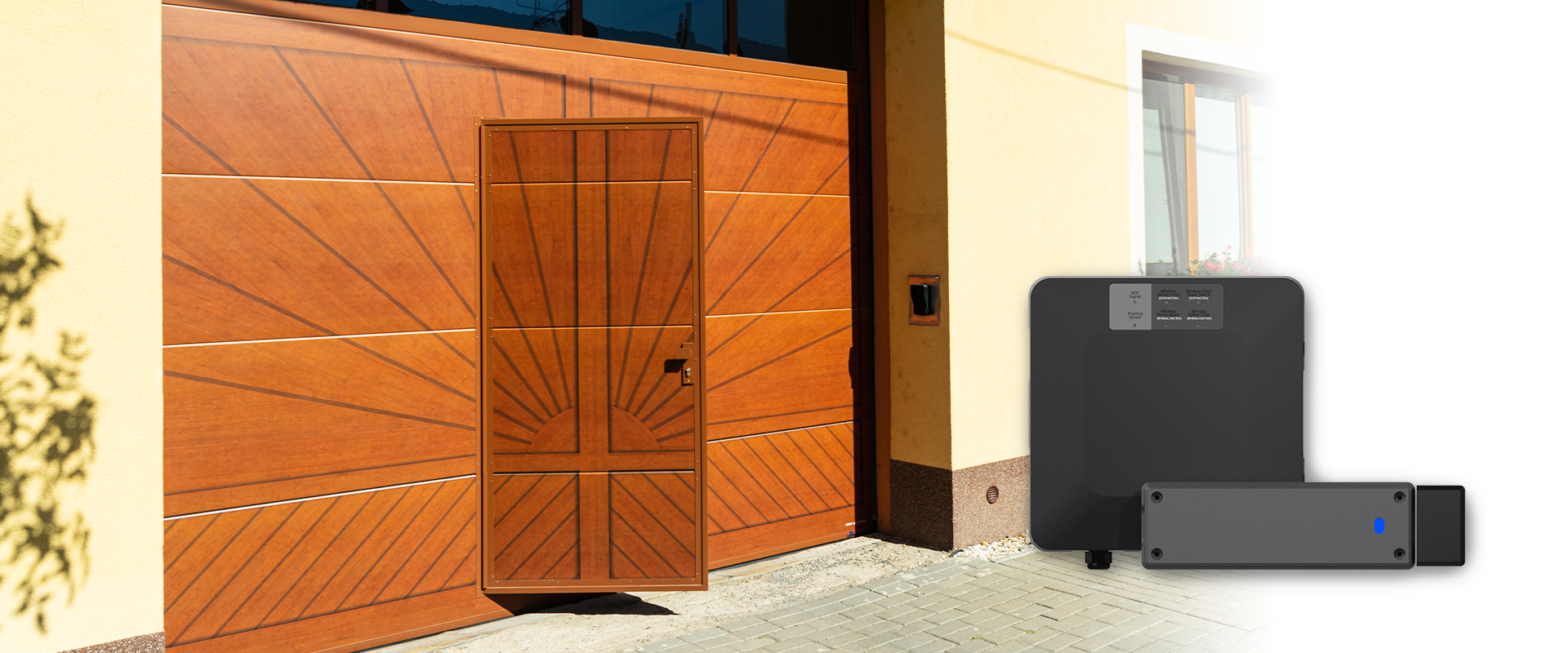

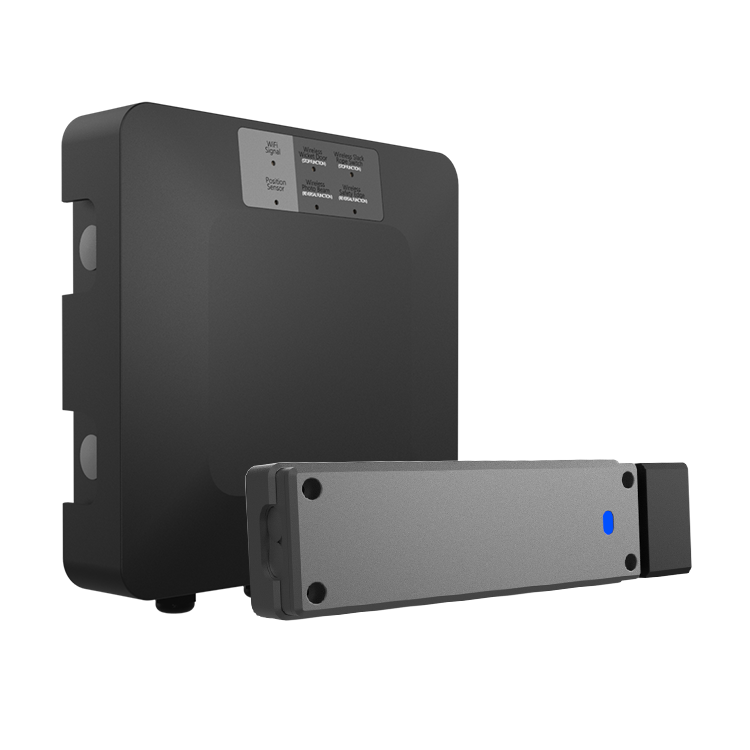

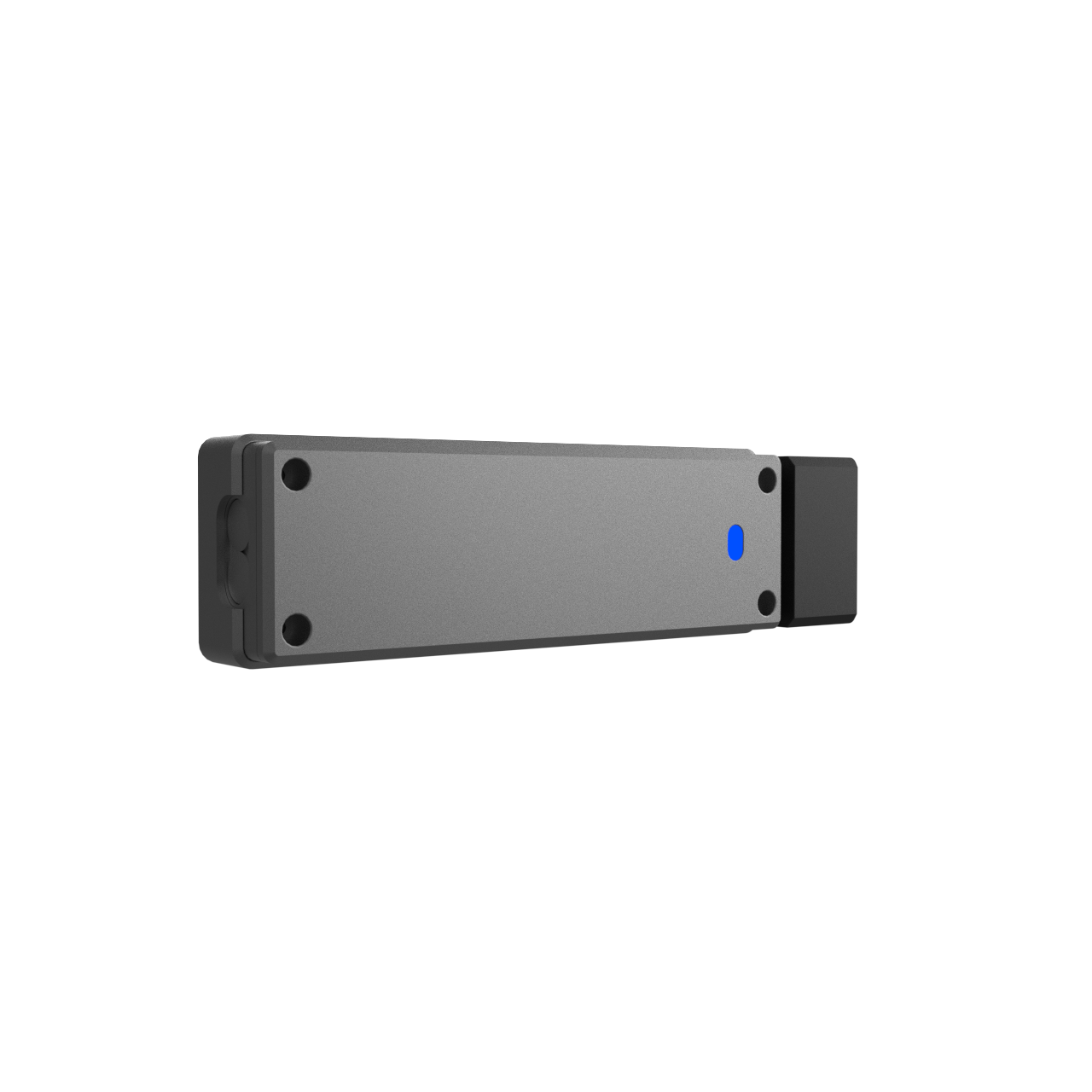

Wireless communication using multi frequency technology between F-box and wicket transmitter for wicket doors.

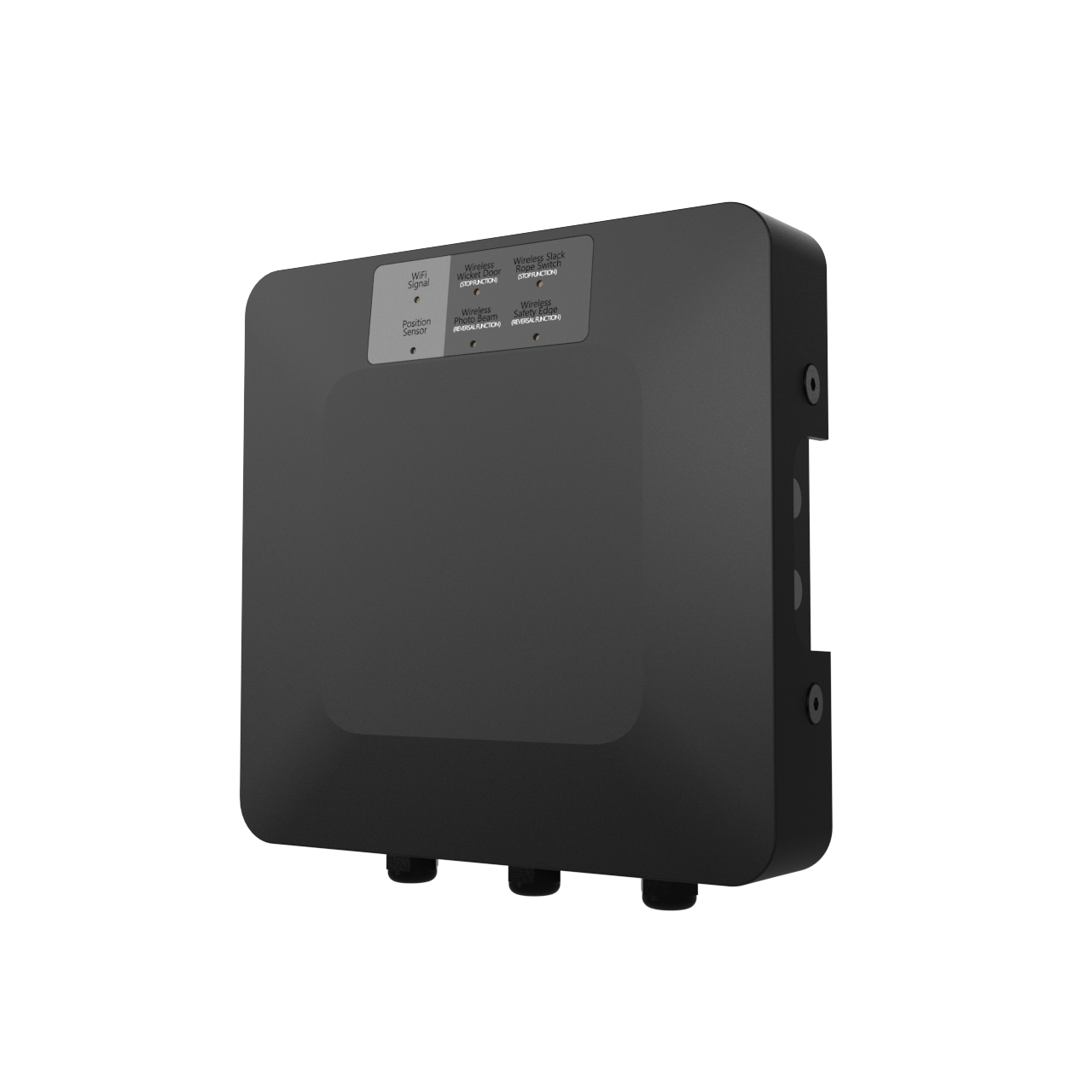

The F-box with a built-in WiFi module, this allow users to linked with "F-linX" APP for "safety center" to track all information about wireless wicket door switch of the door and gates.
Radio technology: Trio-Frequency technology
Frequency: Multi from 409.025 MHz – 458.4 MHz
Signal modulation: FSK
Signal range: 20 meters
Power supply: 3.6V DC (1 x 3.6V lithium battery)
Channels: 2 channels
Battery capacity: 2600 mAh
Operating consumption: 70 uA
Standby: 15 uA
IP grade: IP 65
Operating temperature: -20°C ~ +60°C
RED Directive 2014/53/EU
Machine Directive 2006/42/EC
EMC Directive 2014/30/EU
Helpful links

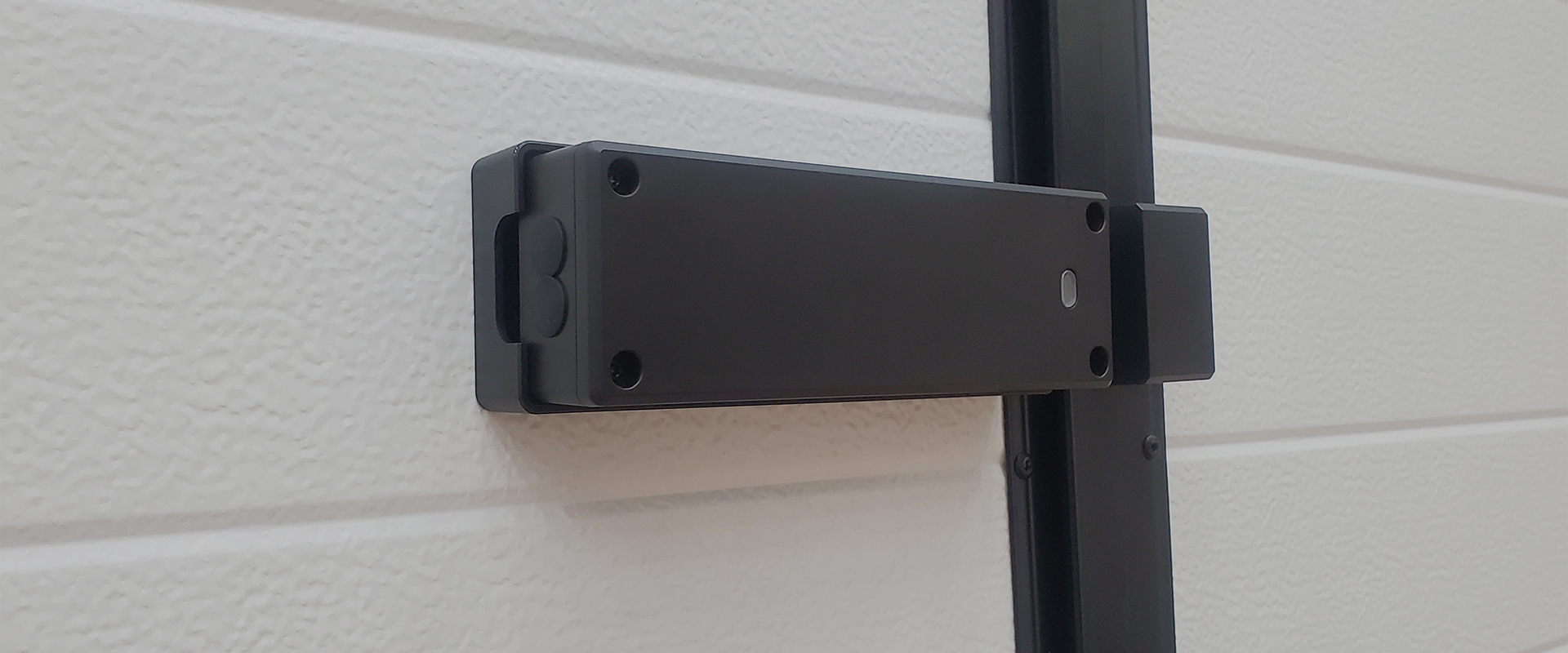

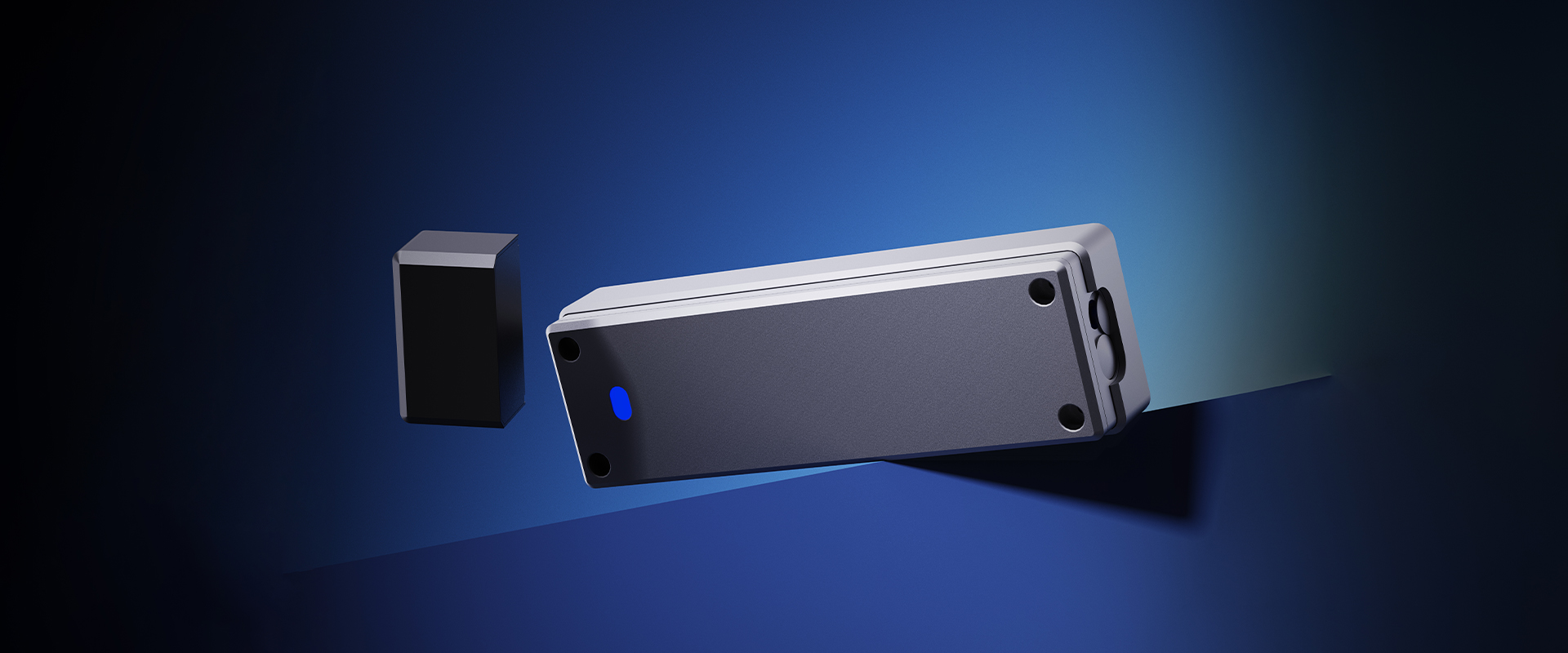

Wireless communication using multi frequency technology
between F-box and transmitter for wireless wicket door switch.
Trio-frequency technology for anti-interference.
Easy and flexible installation that ensures optimal alignment and performance, Increased Installation efficiency.

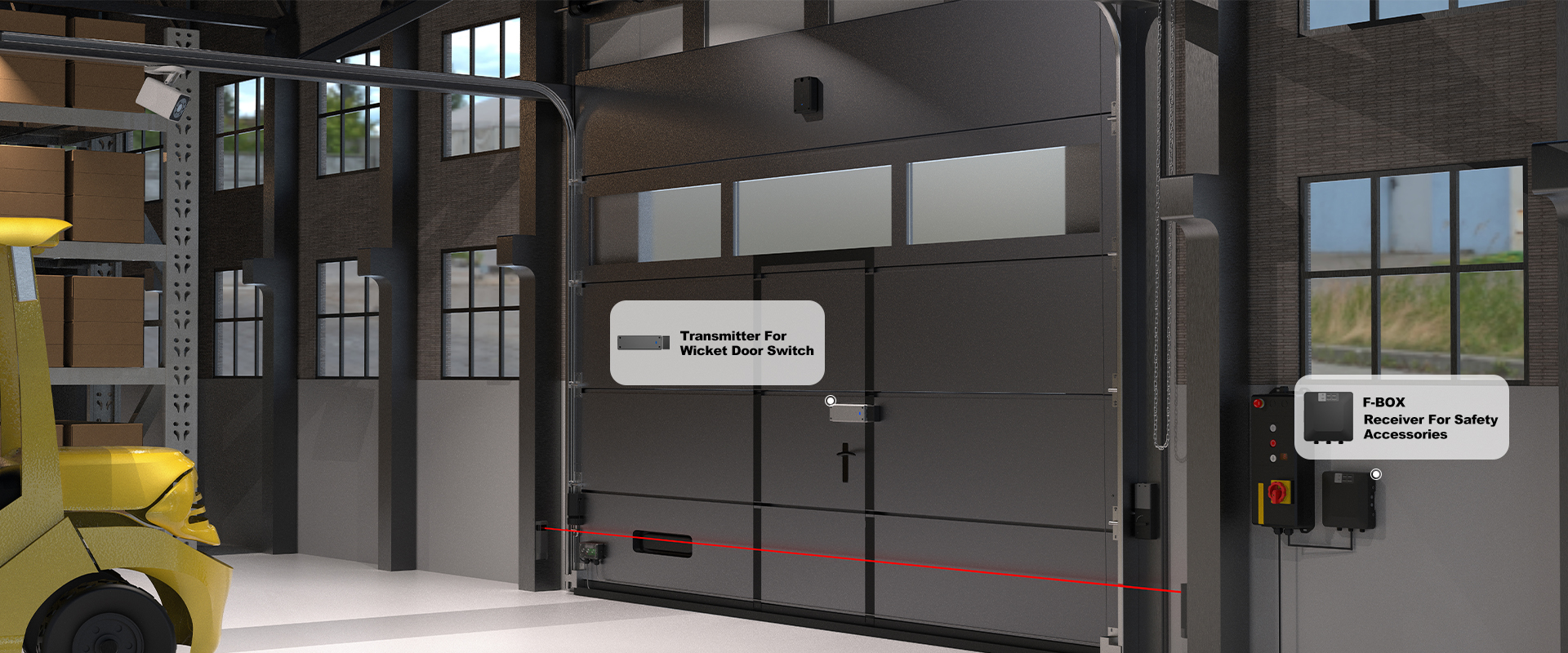

When the wicket door is open, automatically disable the door operators of the doors.
Seamless separation of pedestrian and cargo traffic, ensure safety of pedestrian and cargo.

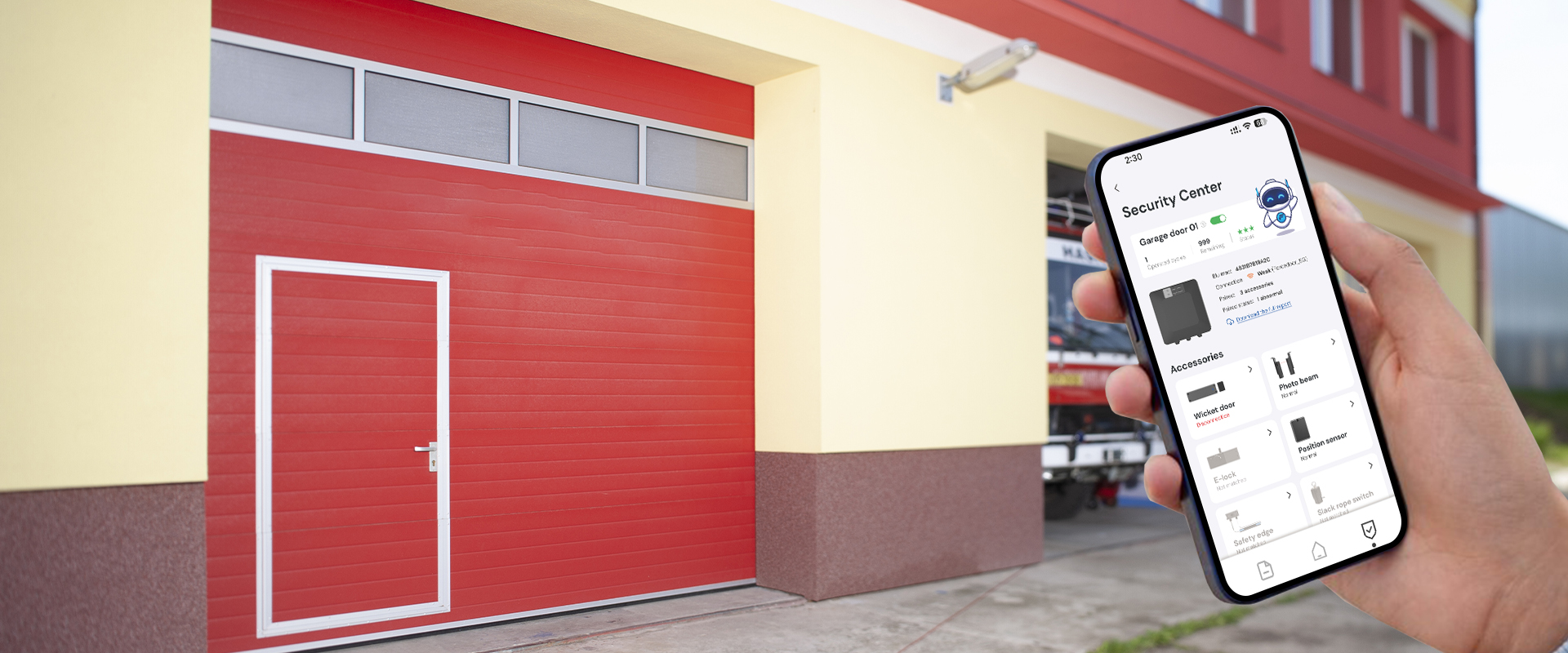

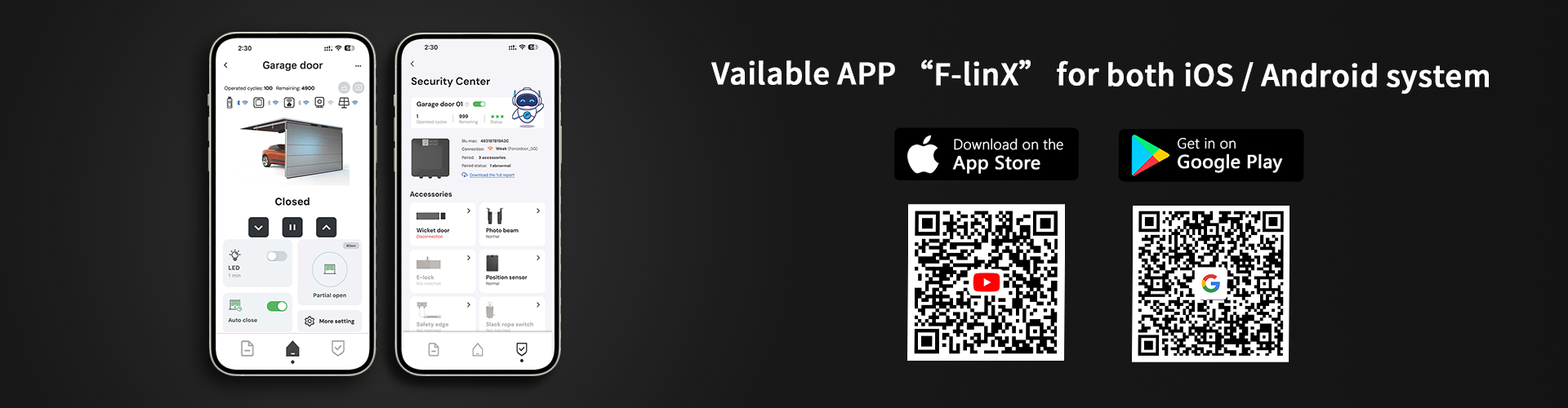

Linked to F-linx APP for safety center to track all information about
wireless wicket door switch of the door and gates.
BRING A SAFER EFFECT ON THE DOORS
