MY FORCEDOOR

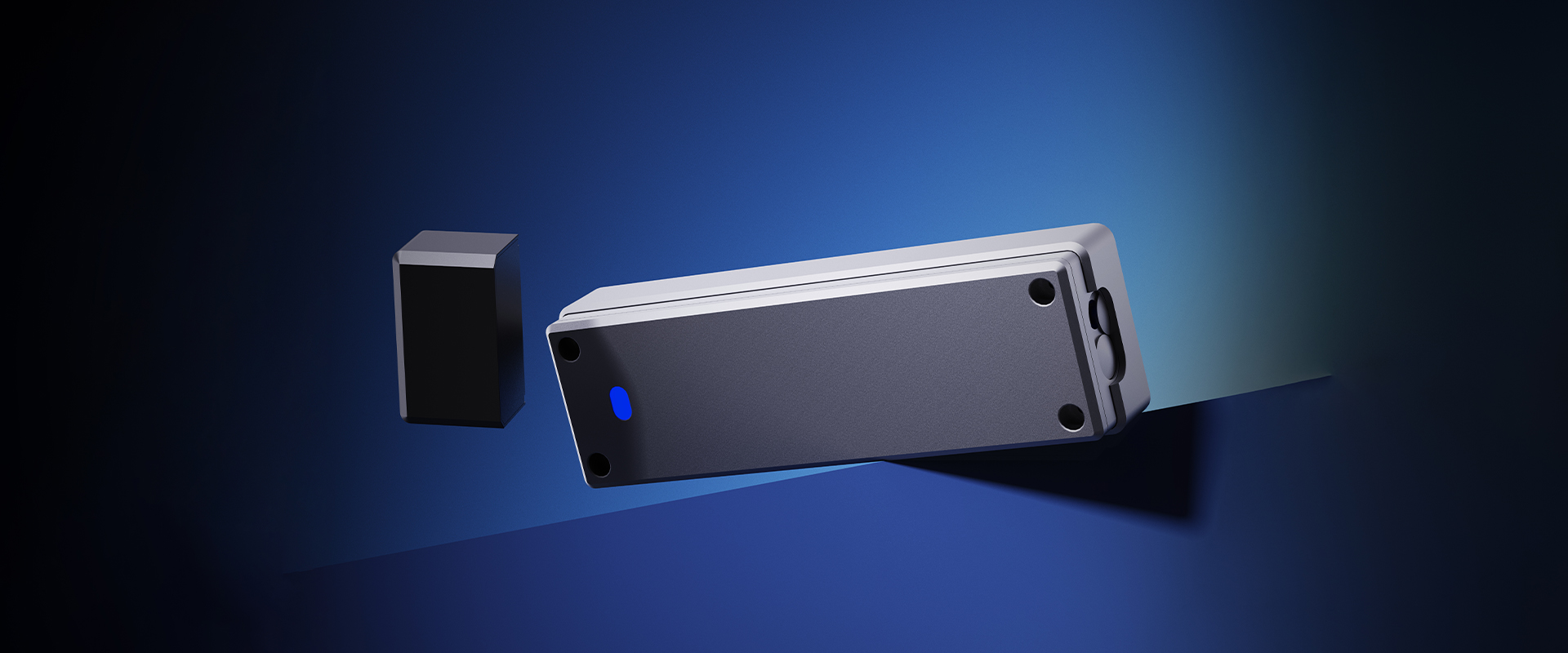

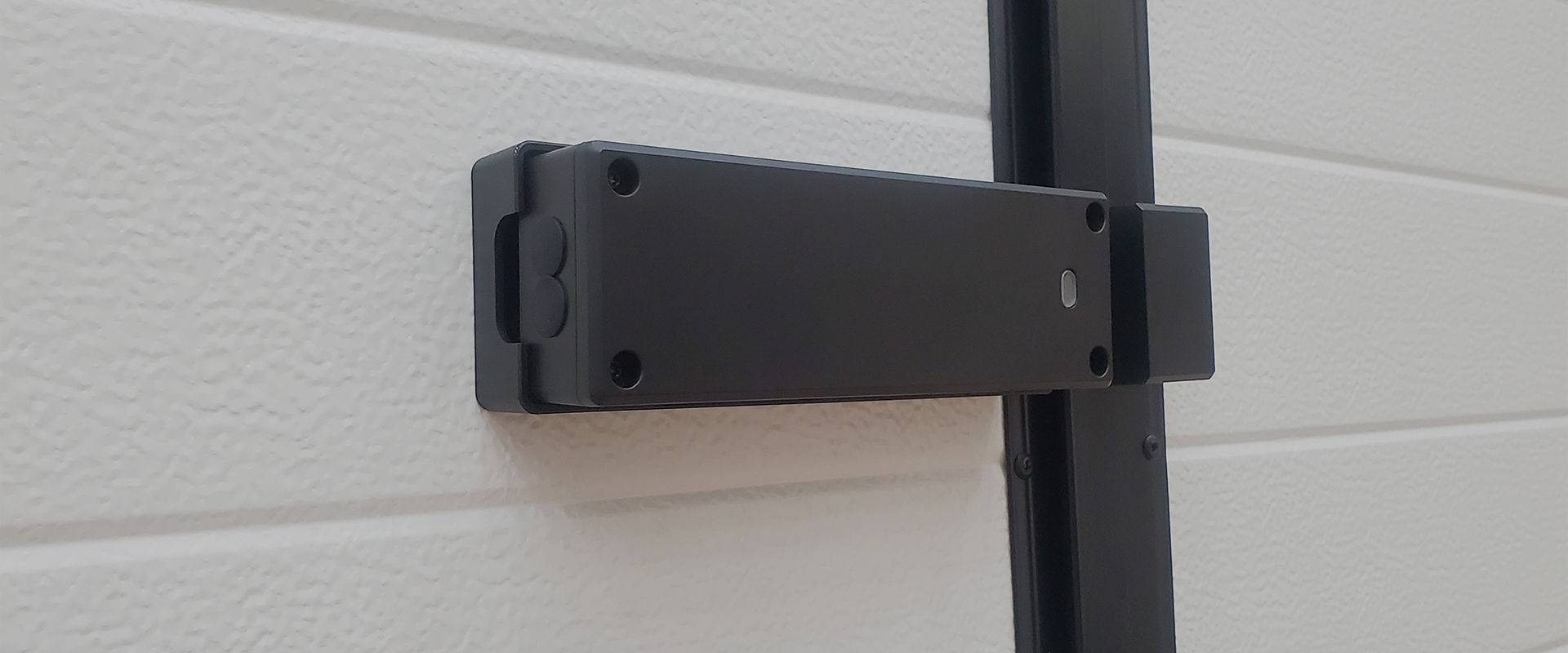

wireless wicket door switch

F-WICKET-1

Home / SMART & SAFETY SYSTEMS / Wireless Safety system / F-WICKET
F-WICKET-1
Description

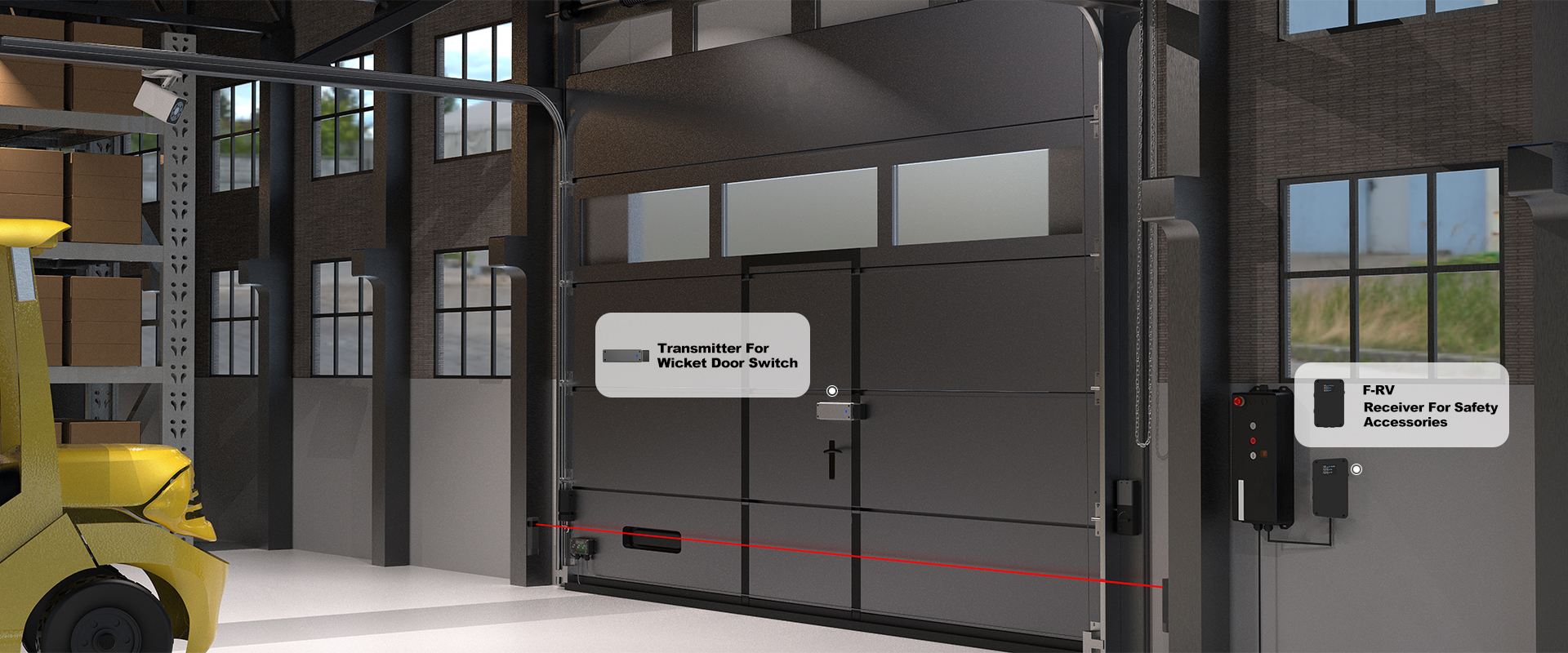

Wireless communication using multi frequency technology between F-RV and wicket transmitter for wicket doors.

Parameter

Radio technology:                              Trio-Frequency technology

Frequency:                                         Multi from 409.025 MHz – 458.4 MHz

Signal modulation:                             FSK

Signal range:                                     20 meters

Power supply:                                    3.6V DC (1 x 3.6V lithium battery)

Channels:                                           2 channels

Battery capacity:                                2600 mAh

Operating consumption:                    70 uA

Standby:                                            15 uA

IP grade:                                            IP 65

Operating temperature:                    -20°C ~ +60°C


Technology & Standards

RED Directive 2014/53/EU

Machine Directive 2006/42/EC

EMC Directive 2014/30/EU
