MY FORCEDOOR

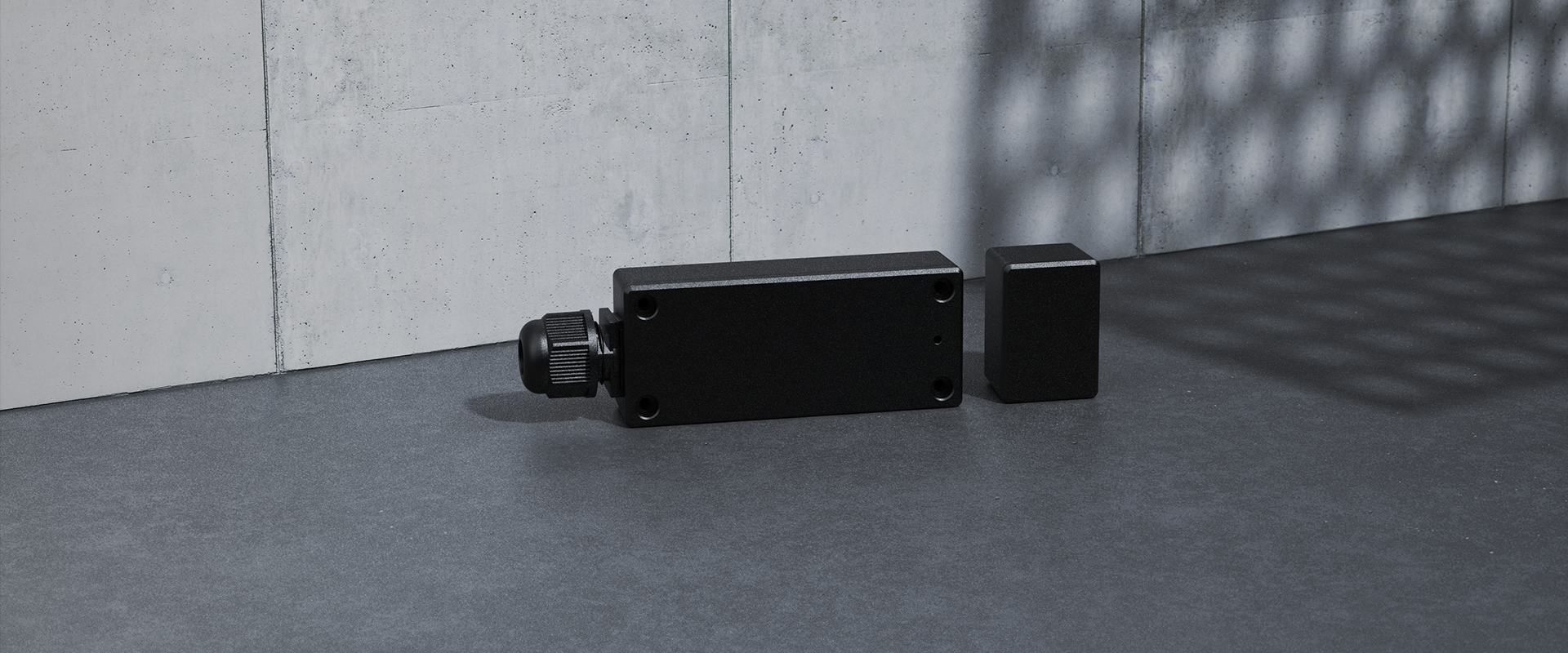

wireless wicket door switch

F-WICKET-MINI-1

F-WICKET-MINI-1
Parameter

Radio technology:                              Trio-Frequency technology

Frequency:                                         Multi from 409.025 MHz – 458.4 MHz

Signal modulation:                             FSK

Signal range:                                     20 meters

Power supply:                                    3.6V DC (1 x 3.6V lithium battery)

Support ports:                                    3 port modes

Battery capacity:                                2600 mAh

Operating consumption:                    75 uA

Standby:                                            18 uA

IP grade:                                            IP 65

Operating temperature:                    -20°C ~ +60°C


Technology & Standards

RED Directive 2014/53/EU

Machine Directive 2006/42/EC

EMC Directive 2014/30/EU


Helpful links

Technical Specifications and Info Video

Mechanical Installation and User Guide
