F-EDGE
Description:

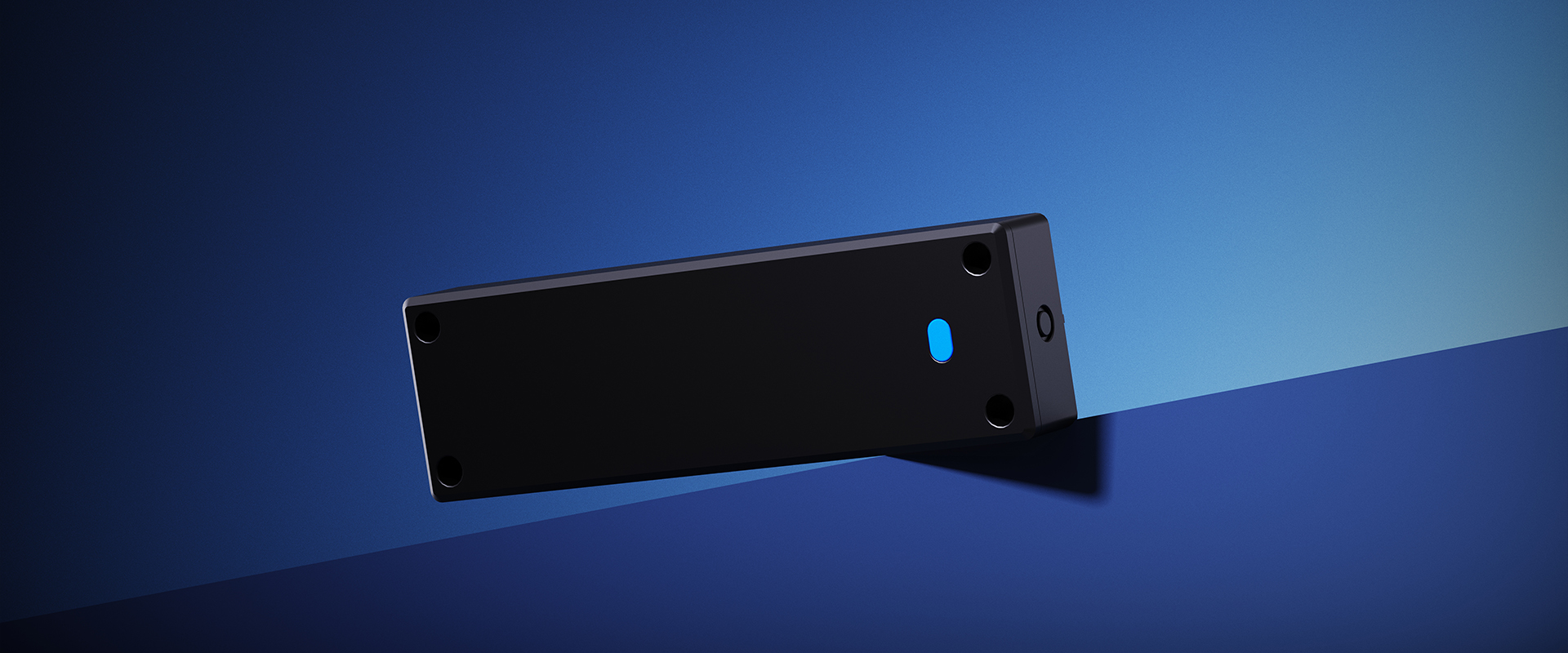

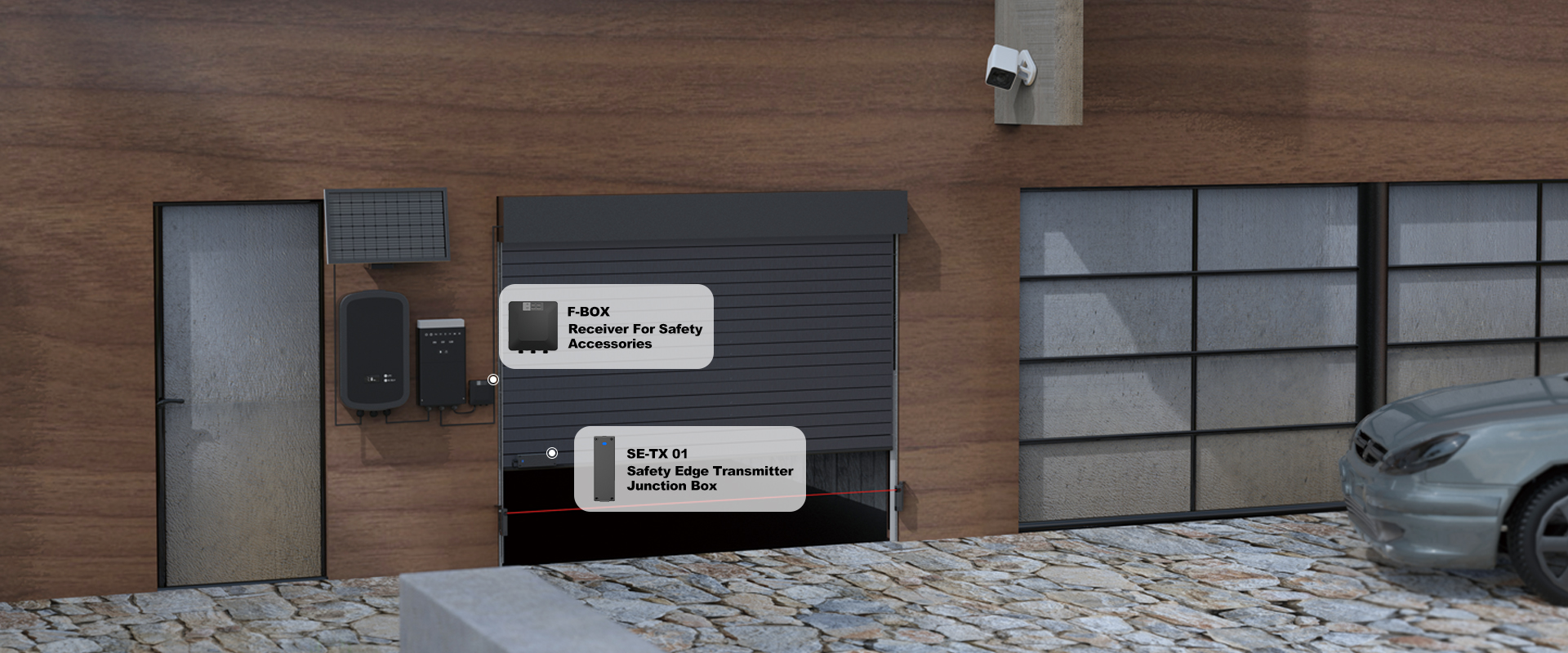

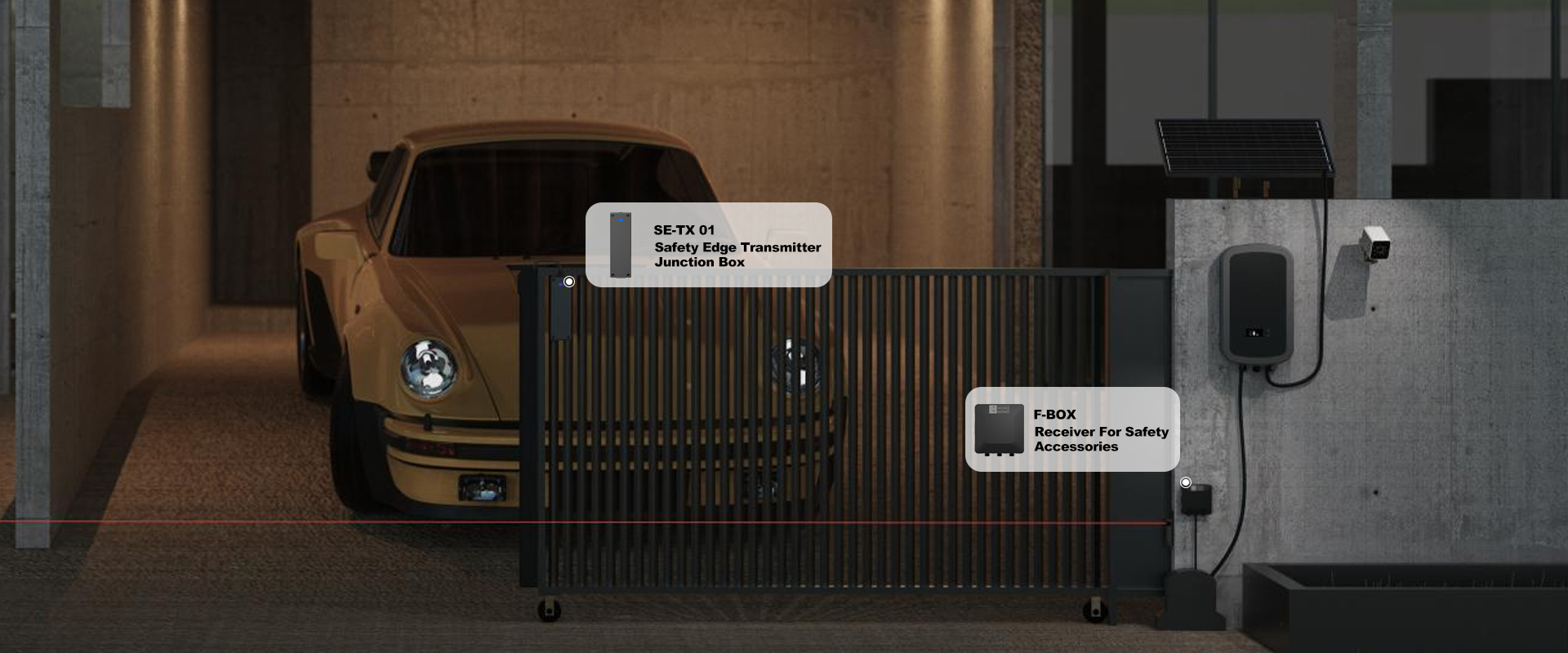

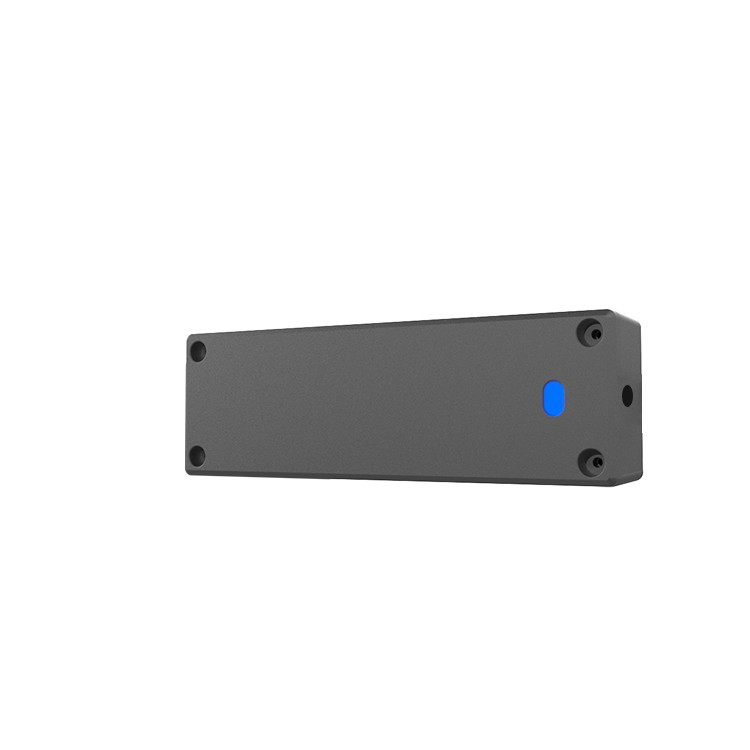

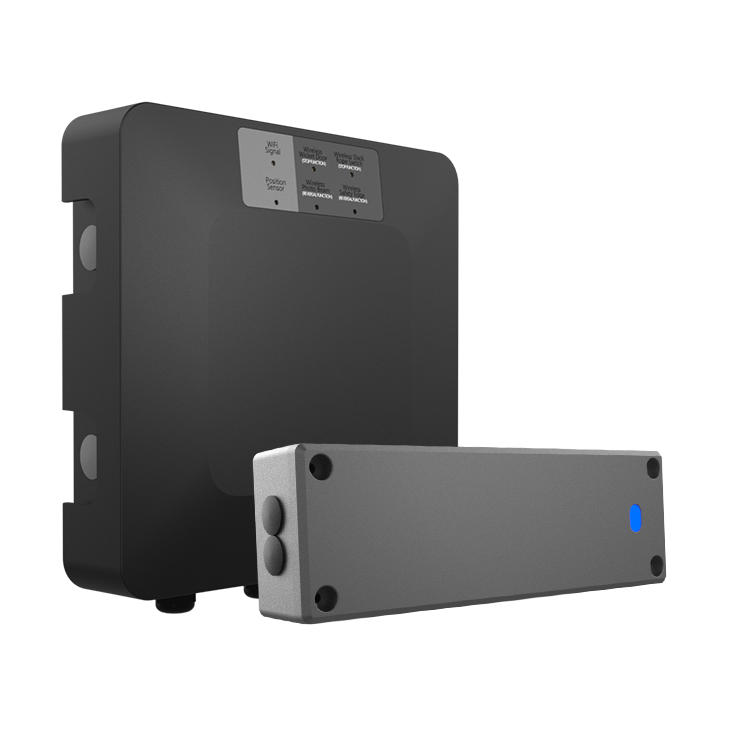

Wireless communication using multi frequency technology between F-box and wireless safety junction box for safety edge.

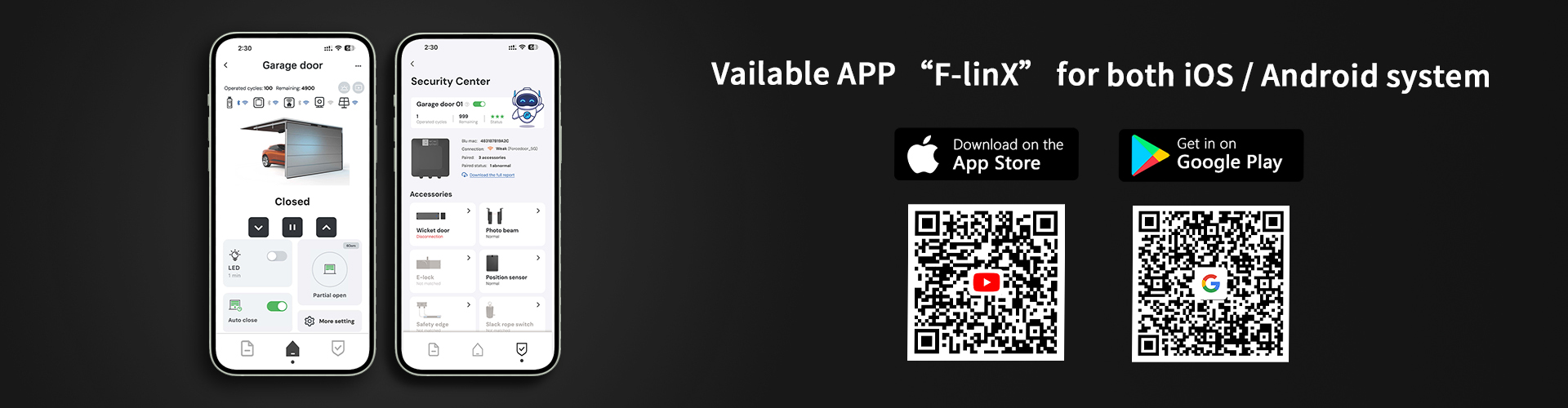

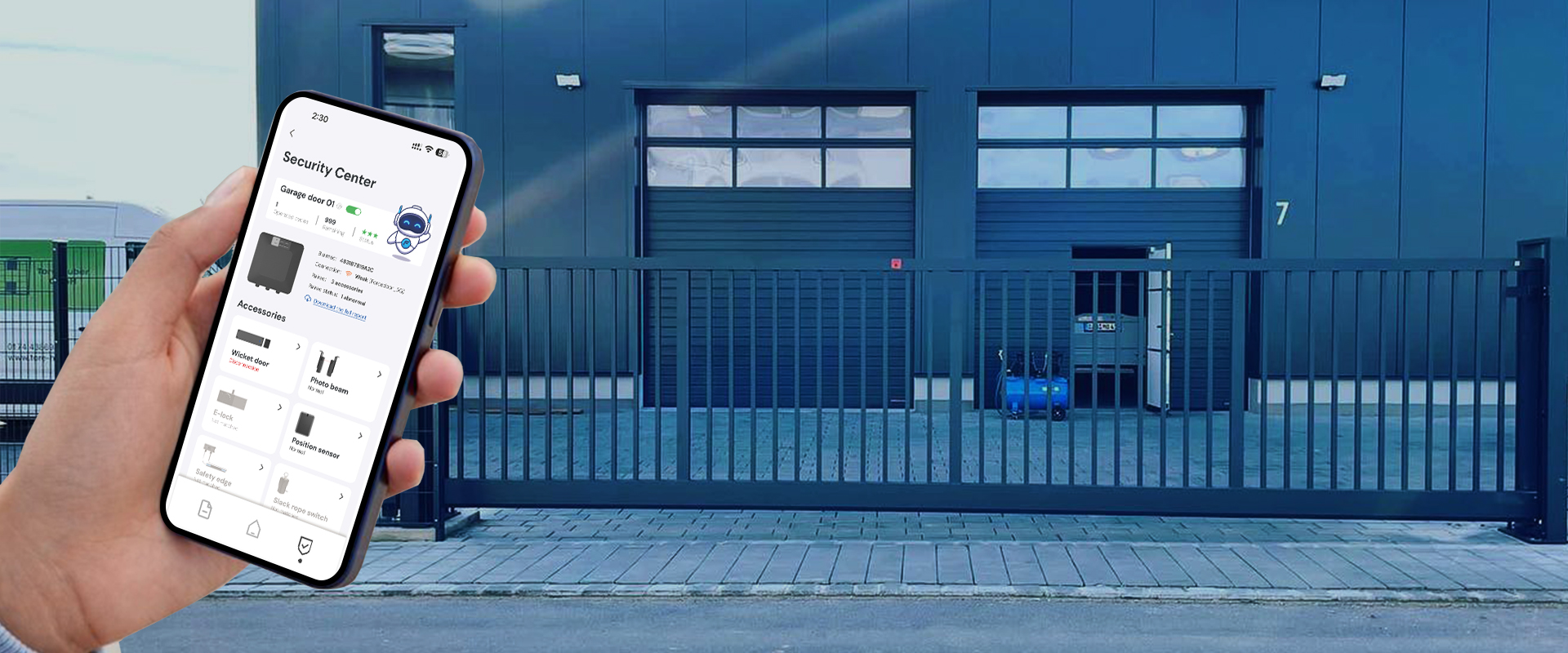

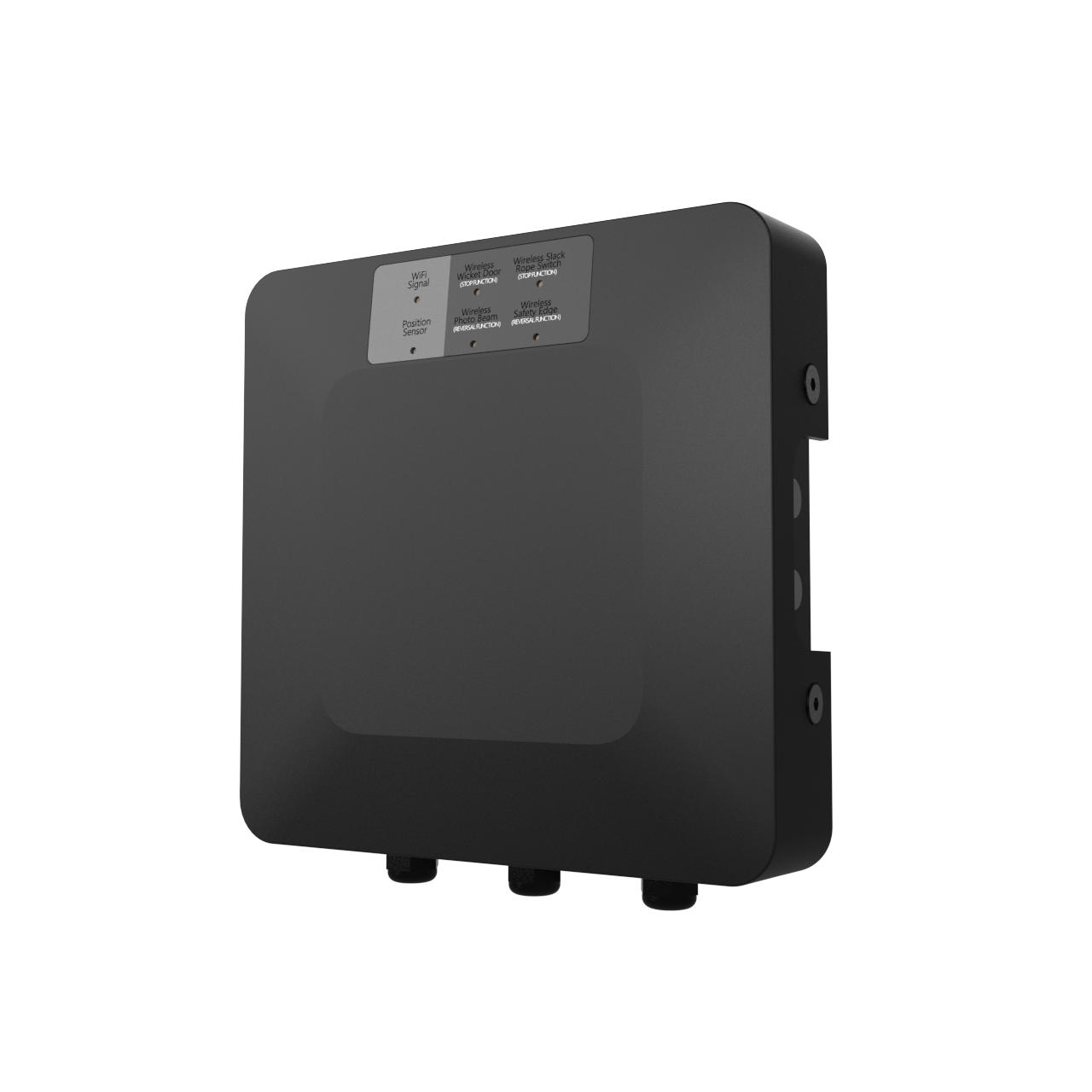

The F-box with a built-in WiFi module, this allow users to linked with "F-linX" APP for "safety center" to track all information about wireless safety edge of the door and gates.


Parameter:

Radio technology:                                                 Trio-Frequency technology

Frequency:                                                            Multi from 409.025 MHz - 458.4 MHz

Signal modulation:                                                FSK

Signal range:                                                         20 meters

Power supply:                                                       3.6V DC (1 x 3.6V lithium battery)

Channels:                                                              2 channels (reversal & stop per channel)

Battery capacity:                                                   2600 mAh

Current of different safety margin modes:            Optical edge sensor      9mA

                                                                             8.2K                               4.2mA

Standby:                                                               70 uA

IP grade:                                                               IP 65

Operating temperature:                                        -20°C ~ +60°C


Technology & Standards

RED Directive 2014/53/EU

Machine Directive 2006/42/EC

EMC Directive 2014/30/EU
