WUXI FORCE TECHNOLOGY CO.,LTD.

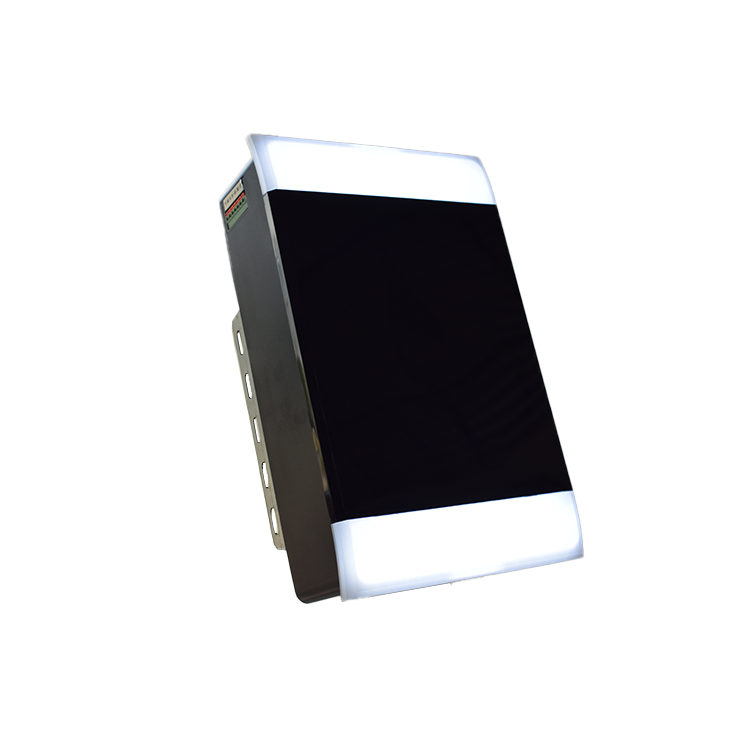

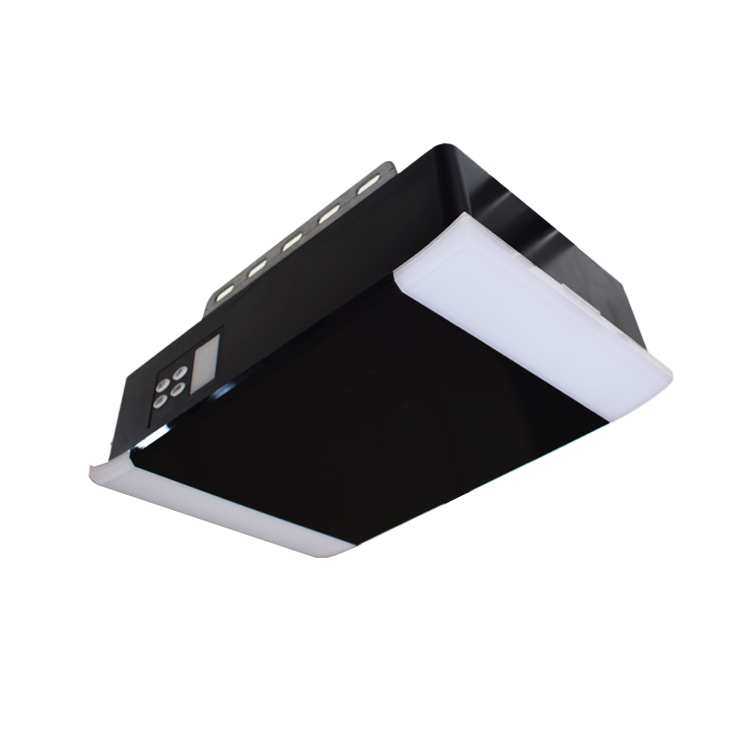

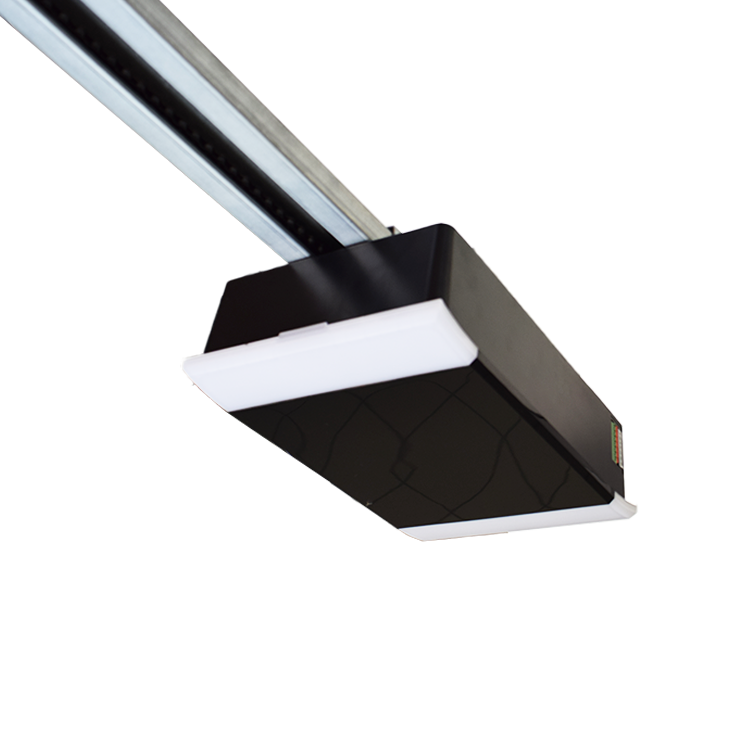

Force-Uno Garage Door Opener

UNO series sectional garage door operator uses an innovative

mirror cover design as well as 2 horizontal parallel LED light

design. It’s not only a sectional garage door operator but

also a decoration crafts of your garage. Contact us for more

information about our UNO garage door operator.

PARAMETER

Model	600N/600N-Speed	1000N/1000N-Speed	1200N
Input voltage	220-240V/110-127V,50-60Hz
Max. opening speed	160mm/second 200mm/second
Max. door height	2400-5000mm
Bottom base material	Metal
Frequency	220-240V/110-127V,50-60Hz
Max.doorarea	7m²	11m²	13m²
Max. door weight	90kg	140kg	160kg

TECHNOLOGY & STANDARDS

All of our door motors garage are CE, RCM & TUV certified for the entire European & Australian market.Our products have EN12453 & EN12445.and include all of the options to make your products smart and compatible in home automation.

C-RAIL with chain/belt

	Single C rail	C rail-2 pieces	C rail -3 pieces

Length(mm)	3150	3500	3800	4000
For doors up(mm)	2300	2700	3000	3200

T-RAIL with chain

	Single T rail	T rail - 3 pieces

Length(mm)	3150	3500	3800	4000
For doors up(mm)	2300	2700	3000	3200

RECOMMENDED ACCESSORIES

WWS01

Wireless wall switch

3 buttons, 433.92 MHz

Rolling code technology

SD PROTECTION 01

Wireless Wicket-door ProtectorIncluding: Receiver * 1

Wireles Sensor * 1

Magnetic Box * 1

Range(nominal): 50 meters

SVR 02

Sun visor remote

2 buttons,433.92 MHz

Rolling code technology

Longer Service Life
More reasonable combination of electronic components, 2 bearings applied to the rail system,
all these improvements reduced the working current and ensured a longer service life of the openers.
Innovated Mirror Design
Great mirror design, 2 x LED lighting bar to bring a stylish garage doors.
Multi-functional, Allow More Safety Purpose
Multi-functional for speed adjustable, running cycles memory for the garage and commercial doors, available to set the maintenance warning to bring a healty maintenance period.
