MULTI FW GARAGE DOOR OPENER

Parameters

Model700N1500N / 25N.m

Max. pull force                700 N1100 N

Max. door area                8 ㎡12 ㎡

Max. door weight (Balanced)     80 kg120 kg

Drive mechanismChain / Belt
Opening / Closing speed      200mm / Second
Input voltage                220 - 240V / 50–60 Hz
L.E.D supply voltage (DC)   24V
Limit setting            Electronic

Transformer          Overload protection technology

Radio frequency                433.92 / 868.35 MHz

Coding format                Rolling code (7.38 x 1019 Combinations)
Code storage capacity

50 different codes (Subject to the actual)

Caution light terminalIncluded
Working temperature

-20°C~+60°C

Protection level

IP20

Technology & standards

All of our door motors garage are CE, RCM certified for the entire European & Australian market. Our products have EN12453 & EN12445 and include all of the options to make your products smart and compatible in home automation.


C-RAIL



Single C rail

Length(mm)3300                      4000
For doors up(mm)2450                     3200

Recommended accessories



Universal smart camera

Support cloud and T card storage

Support montion detection, send you a thumbnail alert and notifications

Two-way audio, you can listen and talk remotely from your phone



Wicket transmitter for wicket doors      Magnetic sensor, contact-free magnetic detector

Height adjustable mounting base for the various wicket doors frame

Trio-Frequency technology for anti-interference

Approximate battery life of 2 years



Transmitter for photo beam

Trio-Frequency technology for anti-interference

Both the transmitter and the receiver are connectable to the contact of a mechanical or resistive safety edge with NC or NO contacts

Adjustable switch to adjust the infrared beam transmitting power for various environment

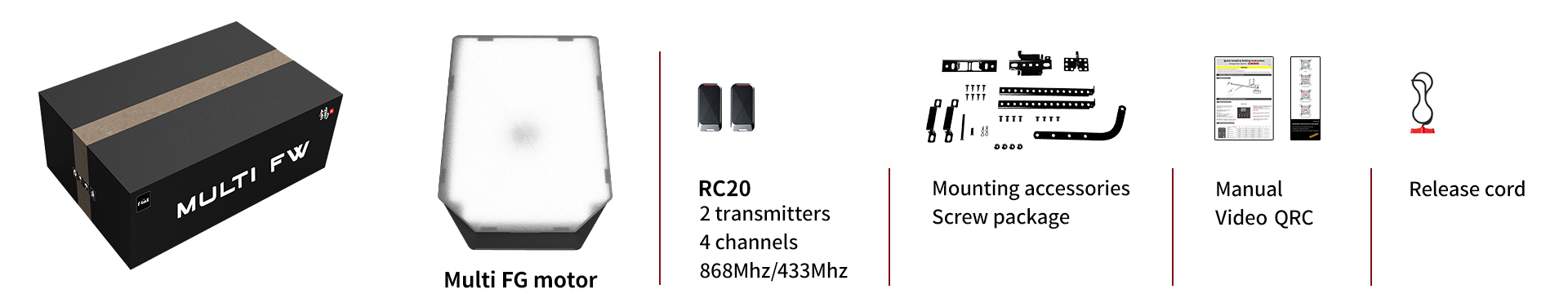

STANDARD KIT
