FEATURES

STANDARD KIT

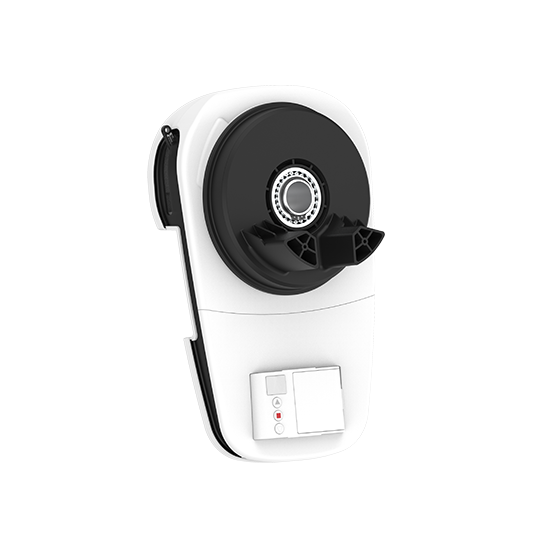

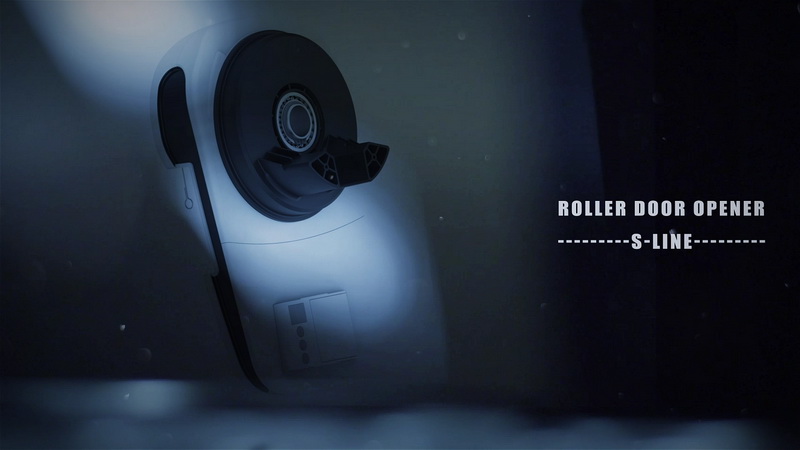

  • S-line motor

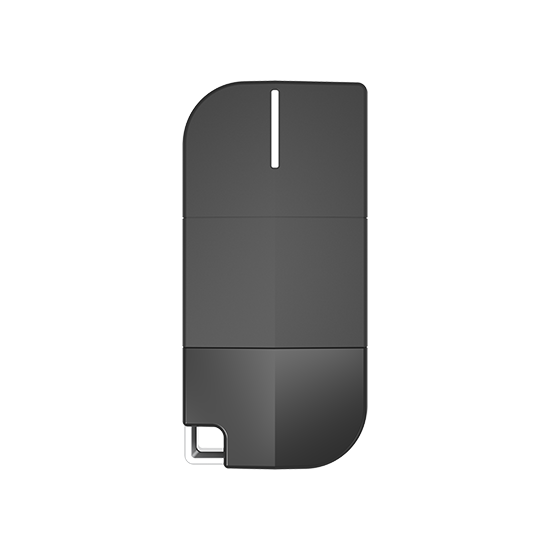

  • RC07 transmitter

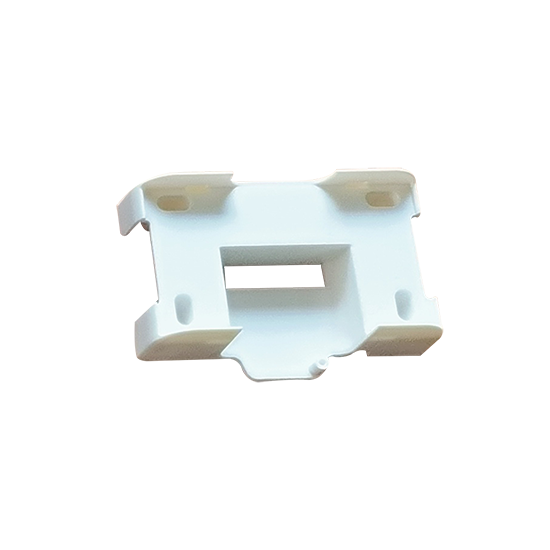

  • Wall bracket

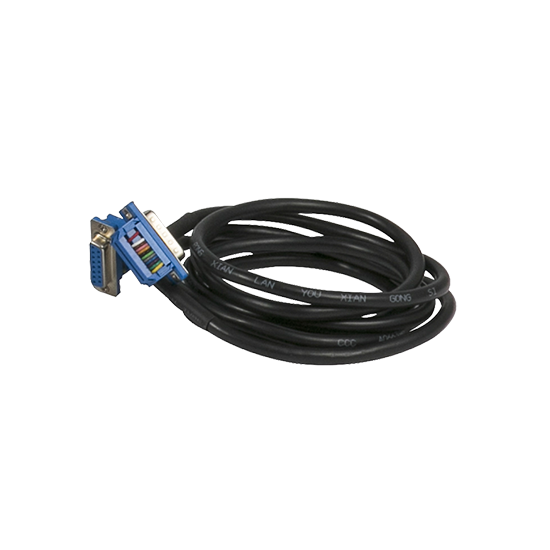

  • Connecting wire

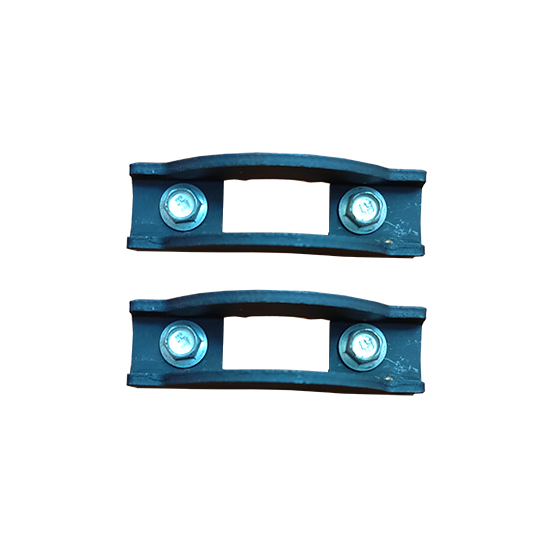

  • Clamp bracket

  • Extend arm

  • Weight bar

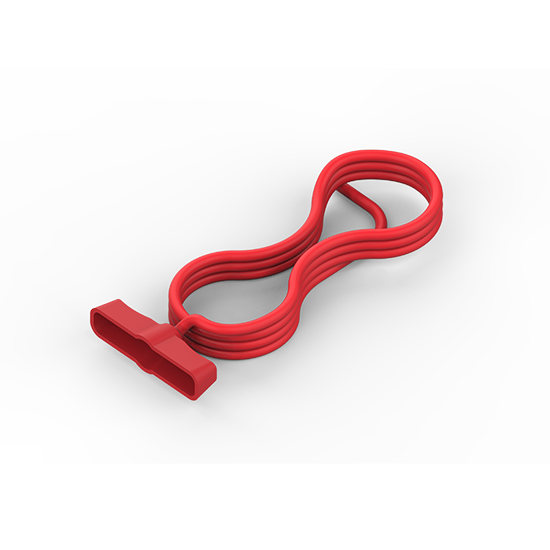

  • Release handle

PARAMETER

Input Voltage230V/110V, 50-60HZ
Transformer Rating100VA
Standby Power2.2W
Motor Type24V d.c. Permanent Magnet
Motor Power100W
Short-term Lifting Force800N
Opening Speed160mm/second
Receiver/Transmitter Frequency433.92MHz
Coding SystemRolling Code Technology
Transmitter Capacity (x 4-button registers)50

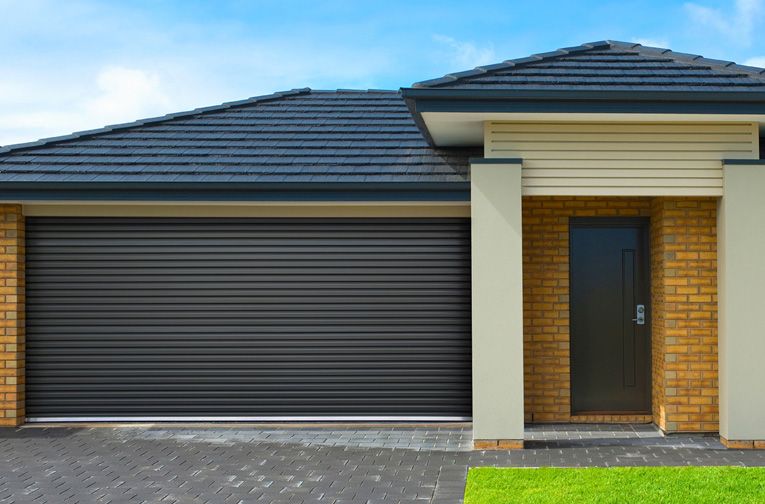

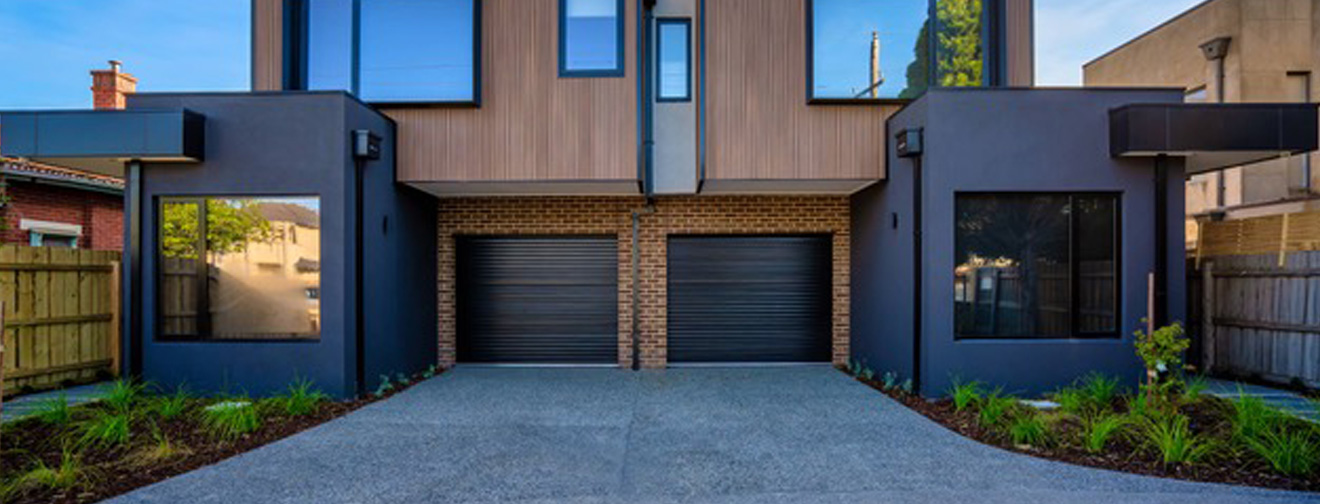

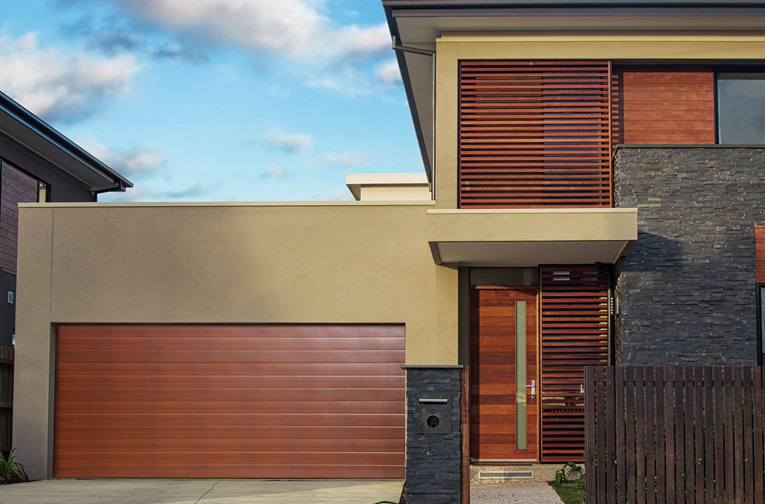

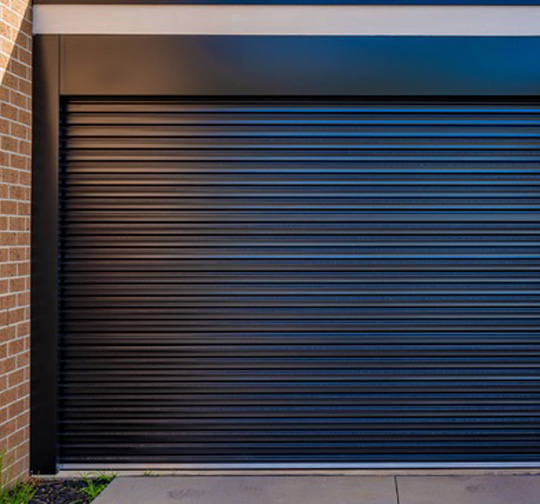

APPLICATION

PACKAGING SOLUTION

optional accessories
