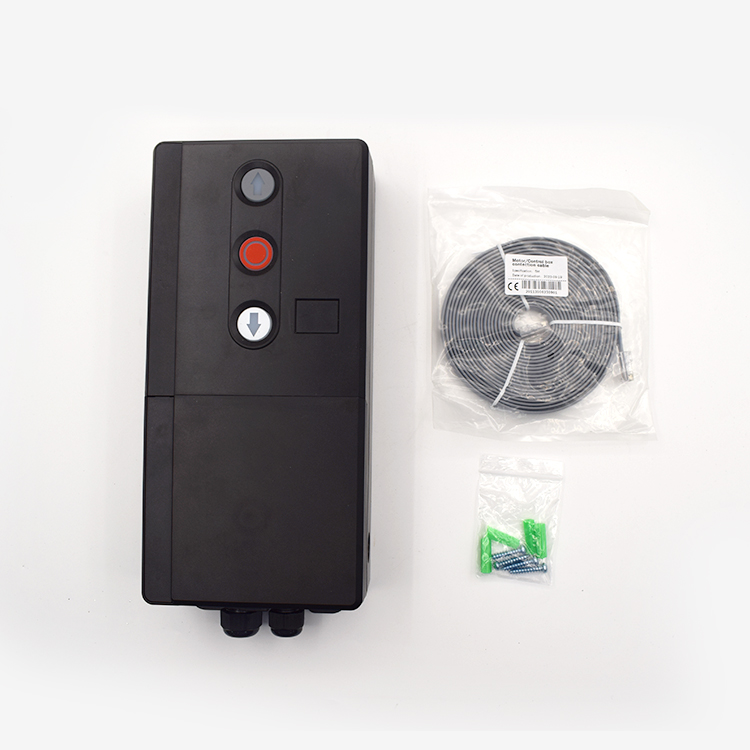

Control unit for IDO

Description:

STD 220V / STD 380V / PRO 220V / PRO 380V

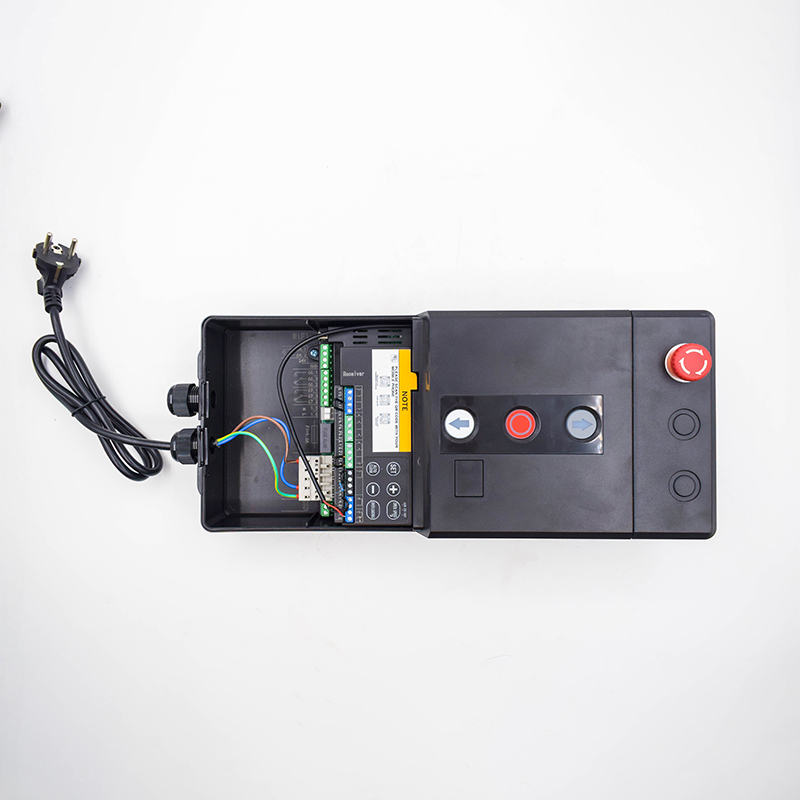

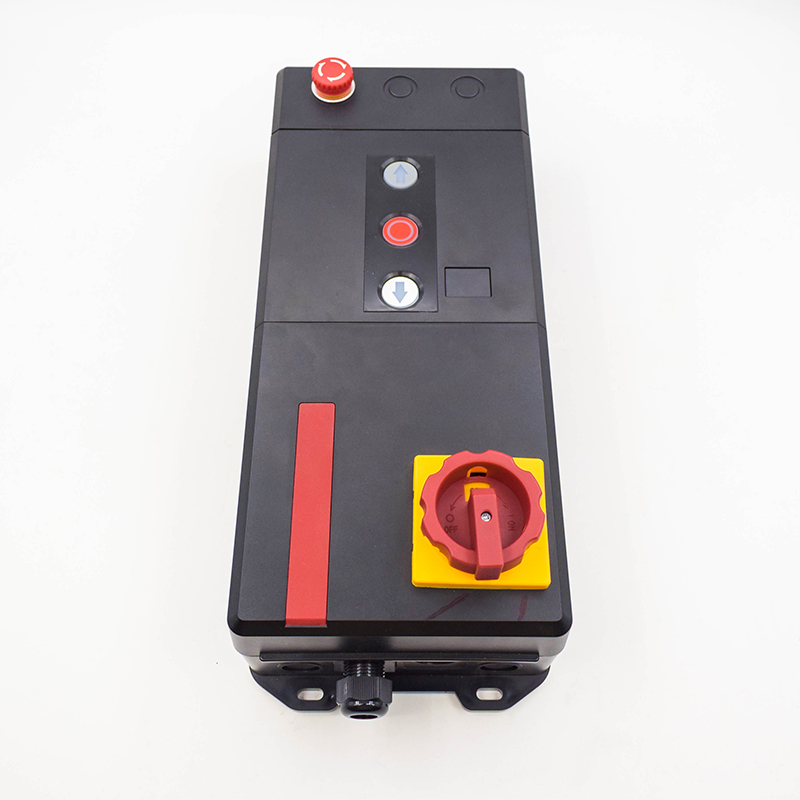

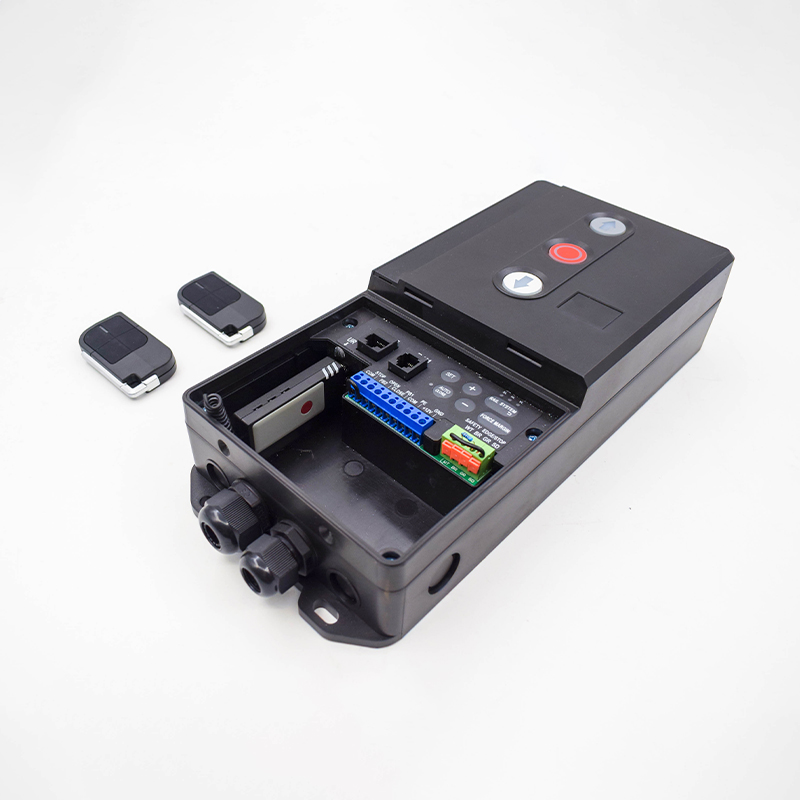

Control unit for DC IDO （Base 50 & Base70 ）

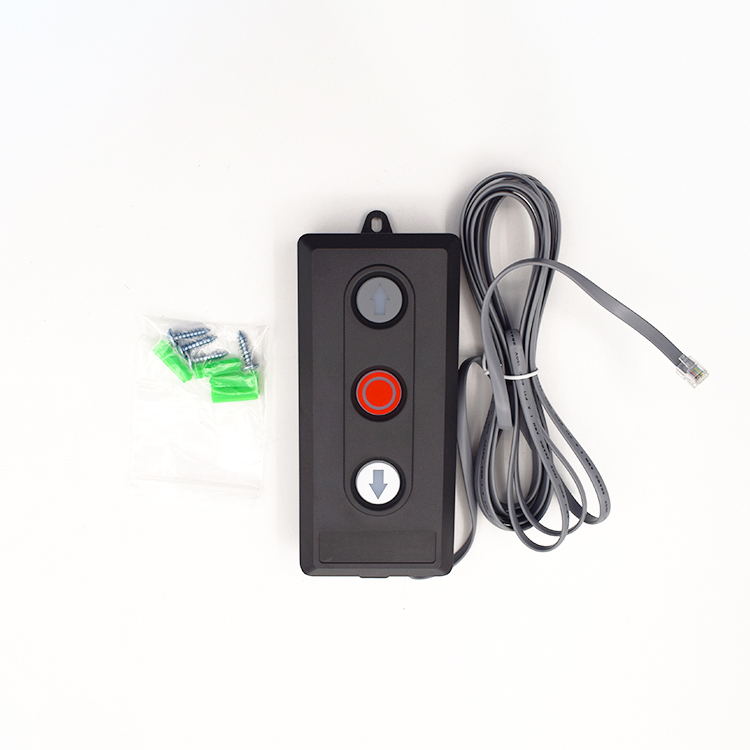

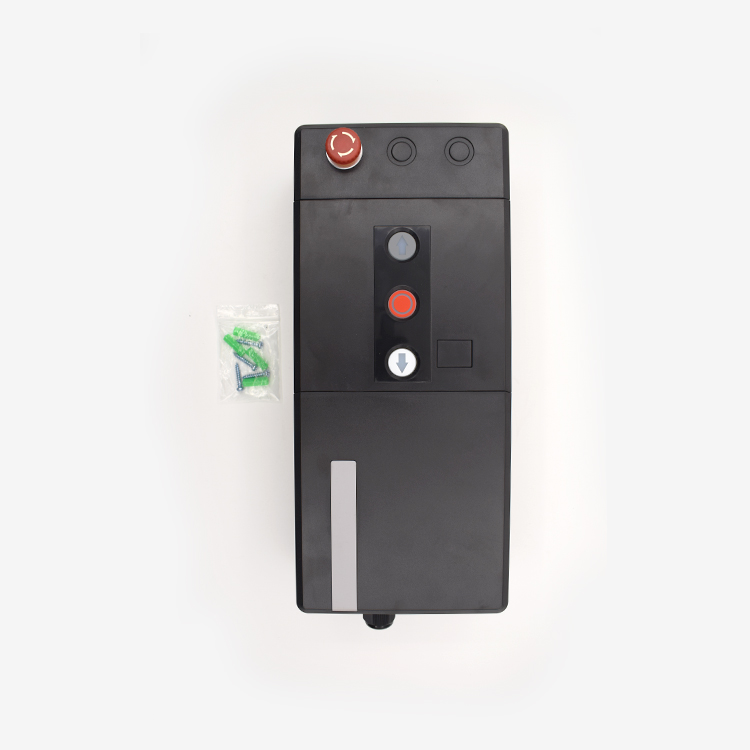

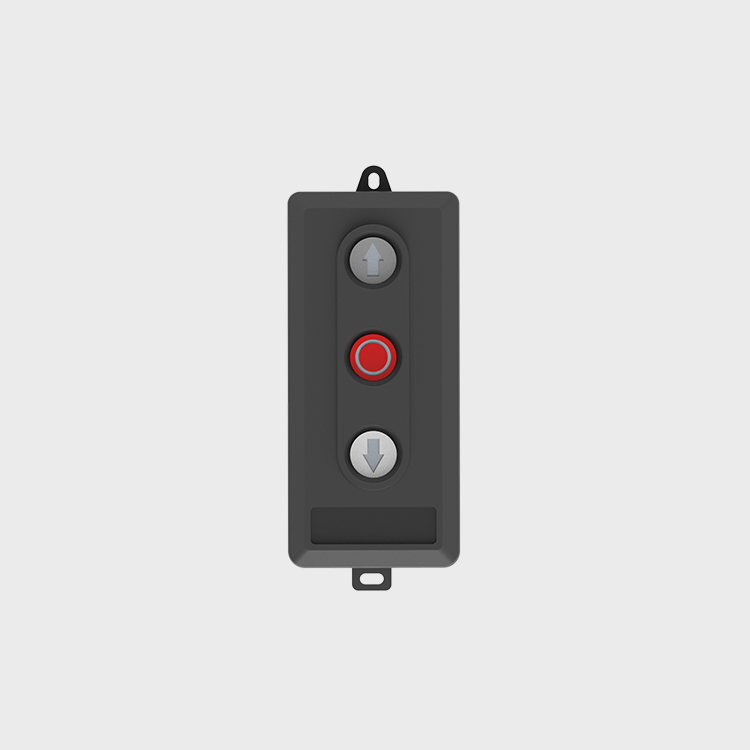

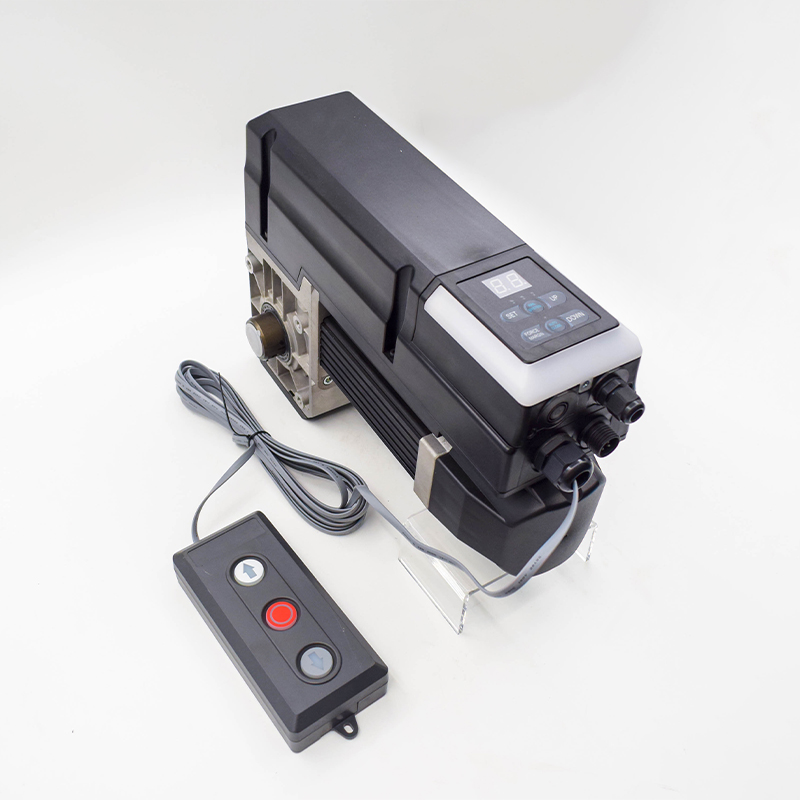

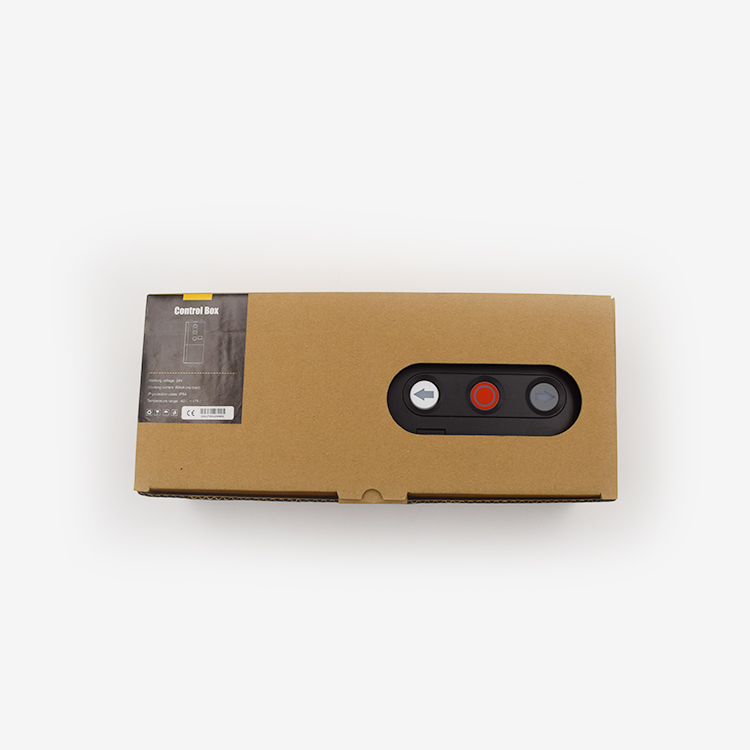

Wired push button (open, stop, close) for DC series（Base 35，50，70 ）of IDO

For DC series (Base 35, 50, 70) of IDO

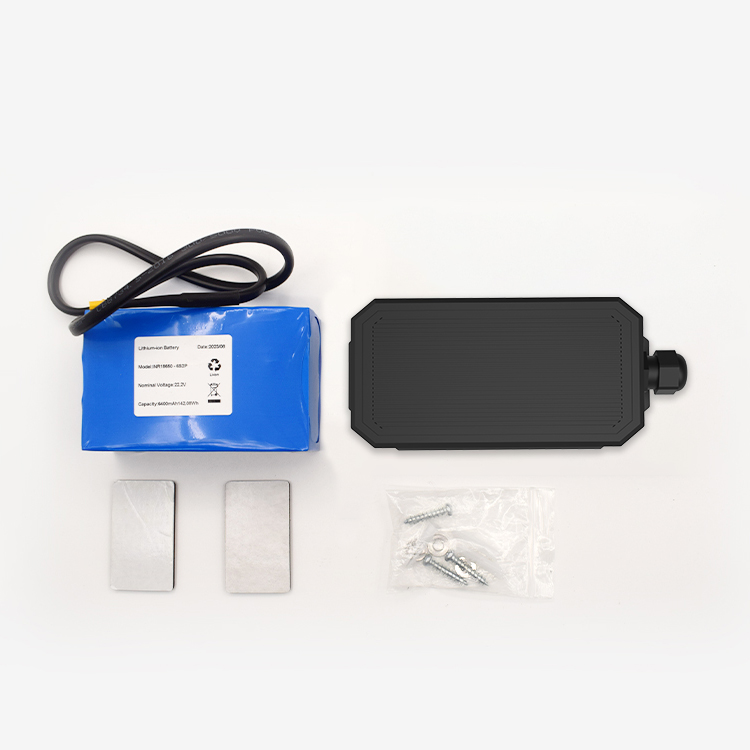

24V, 6.4Ah

For DC IDO (Base50, Base70) control unit

For DC industrial door control unit

For FC control unit

For DC series (Base35, 50, 70) of IDO

For DC IDO (Base 50, Base70)

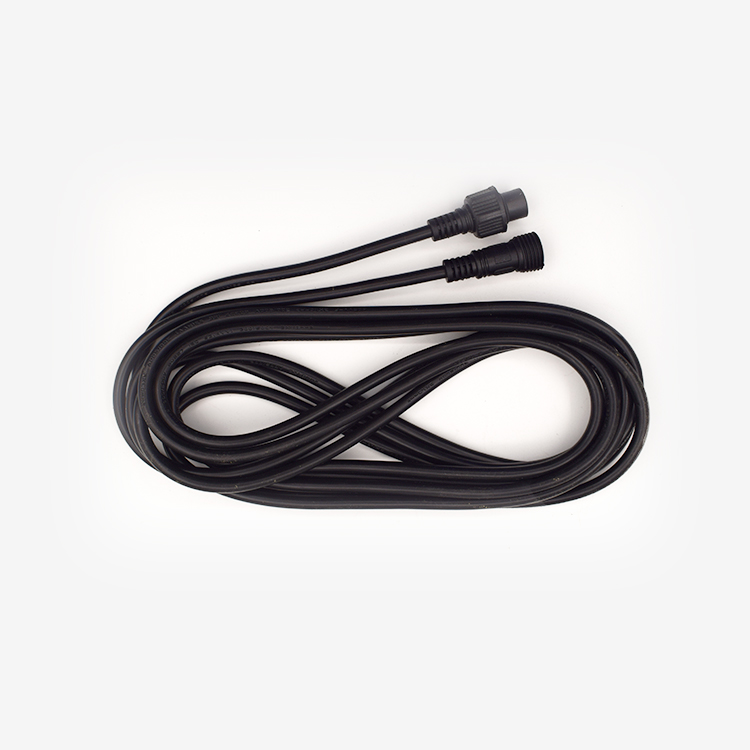

Connection cable between control unit and power motor

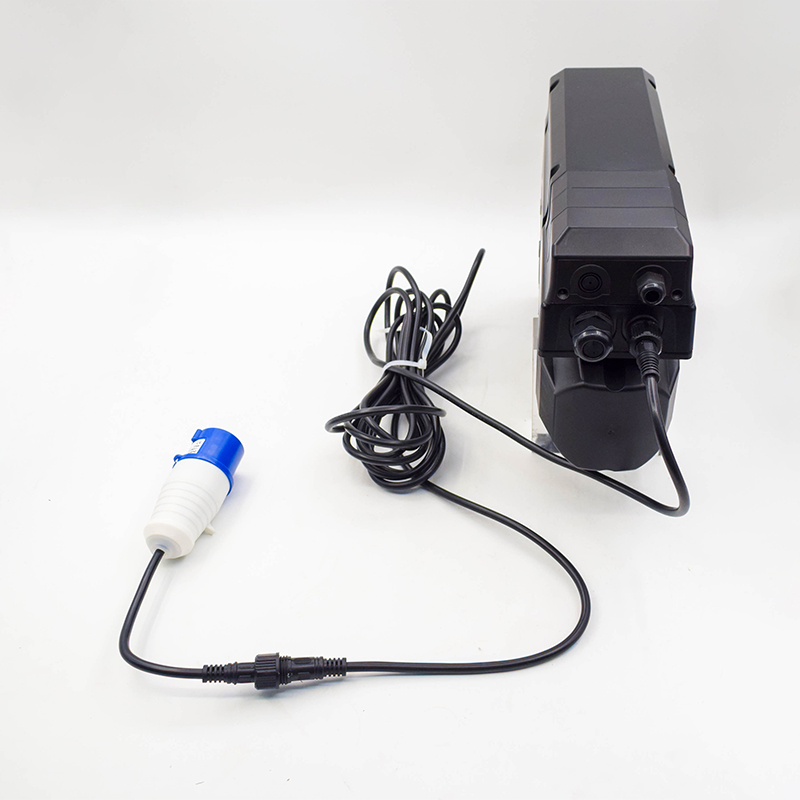

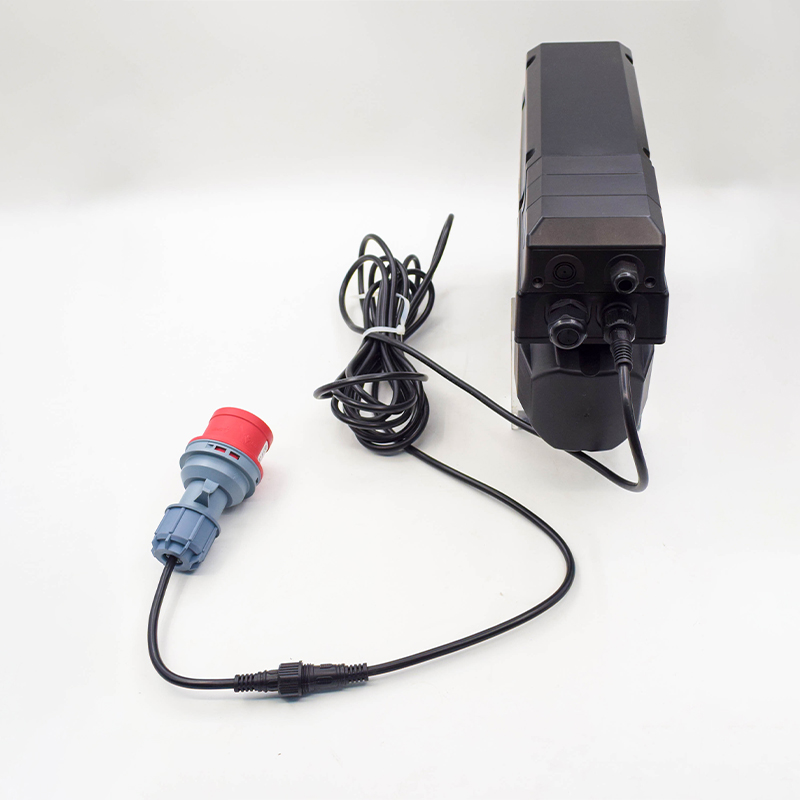

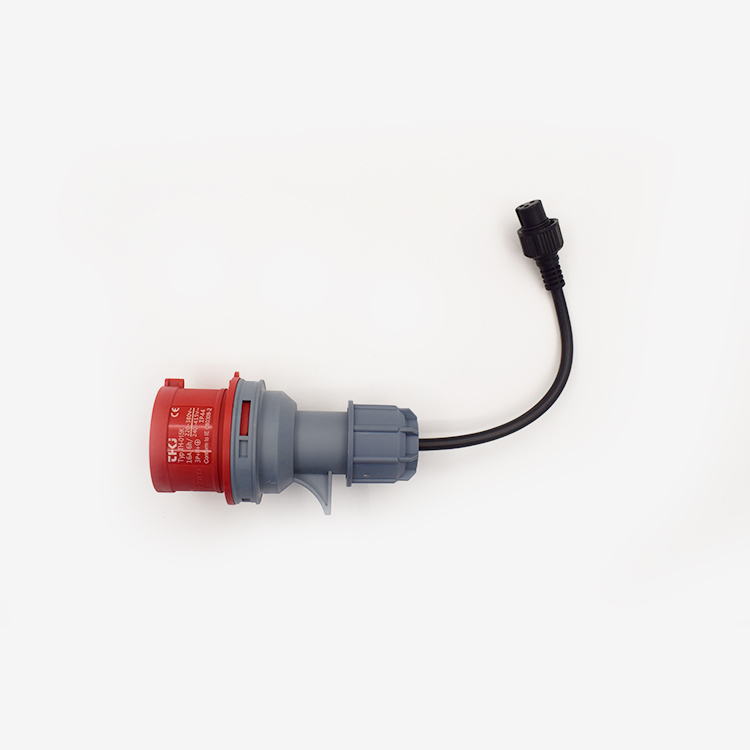

380V power red plug (three-phase) with 15cm cable

For DC series (Base 35, 50, 70) of IDO

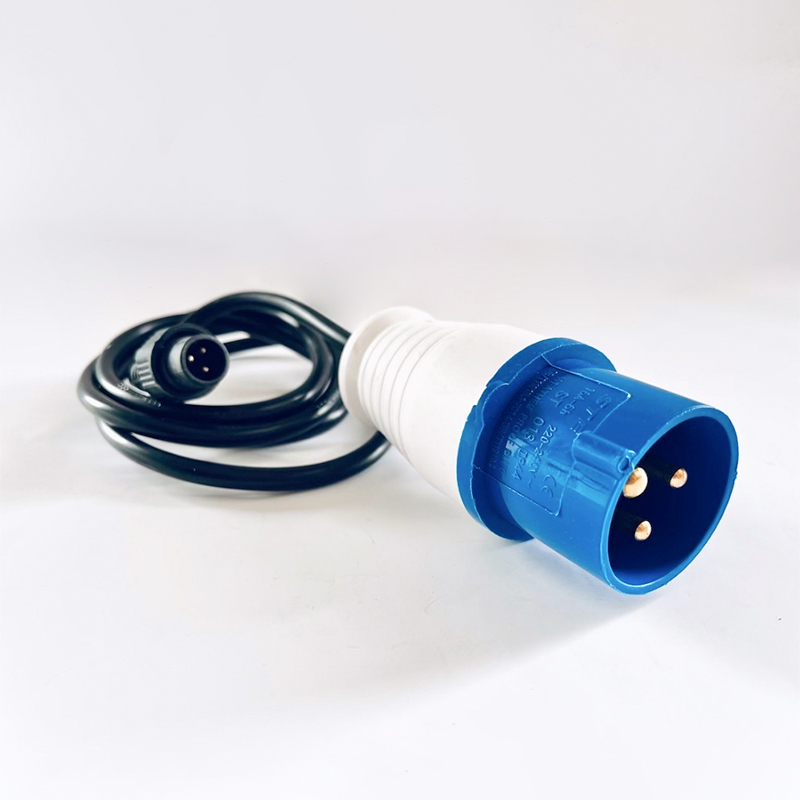

230V power bule plug (three-phase) with 15cm cable

For DC series (Base 35, 50, 70) of IDO

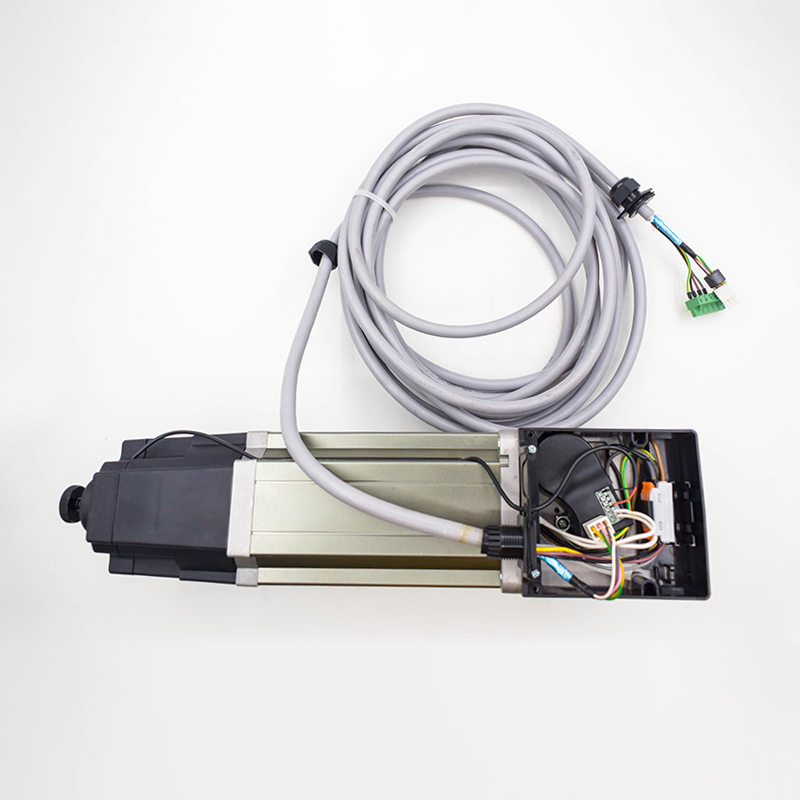

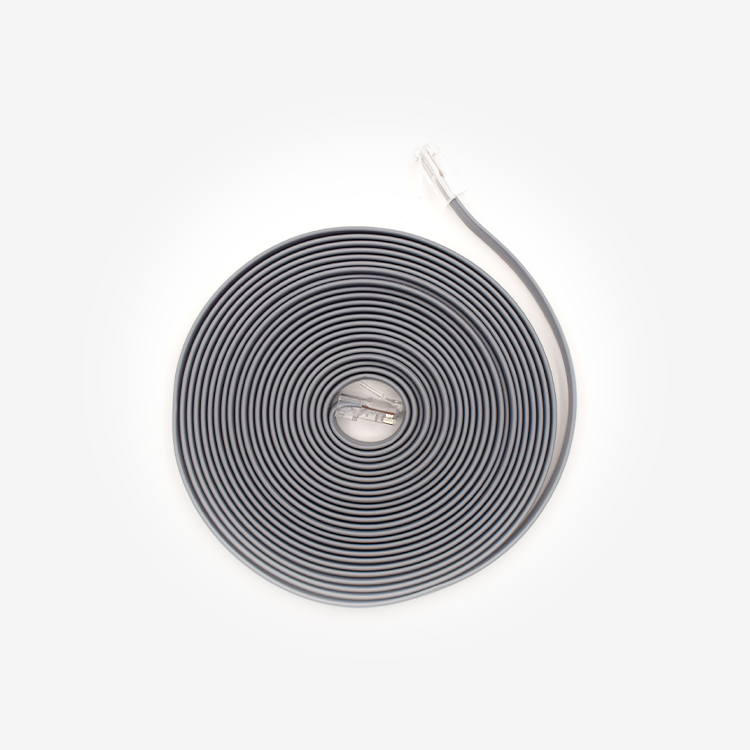

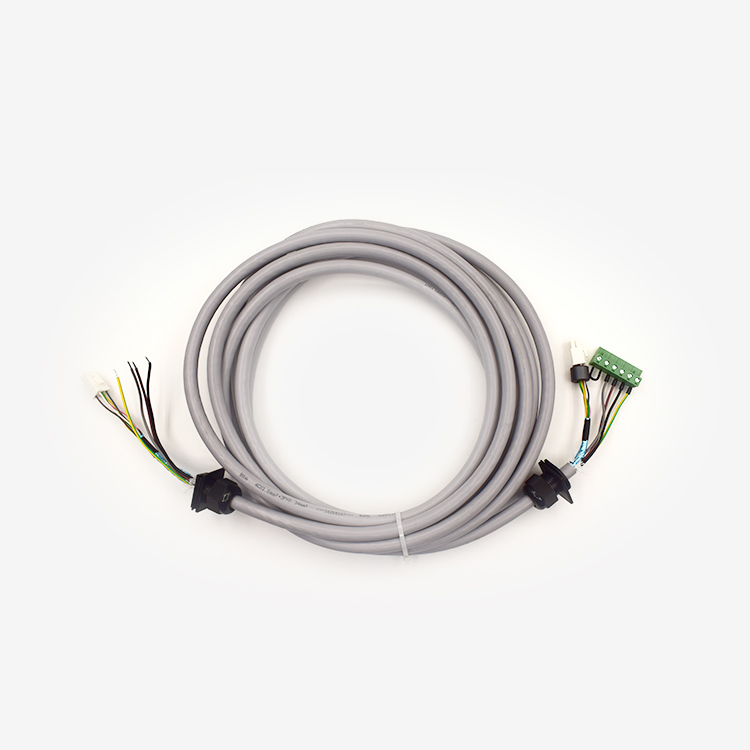

Connection cable(10 cores)for FC IDO

Connection cable between control unit and power motor

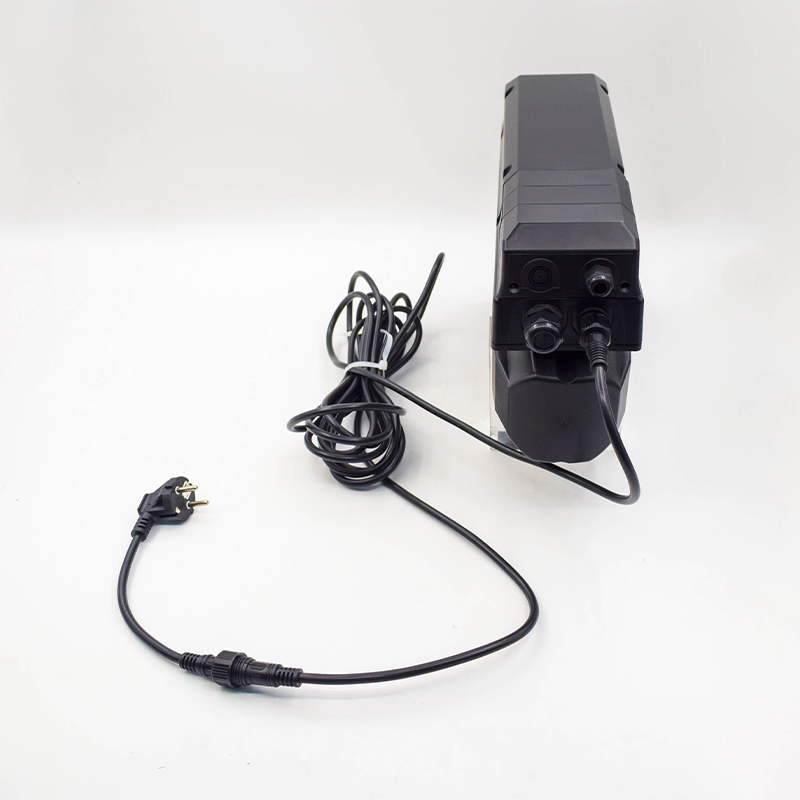

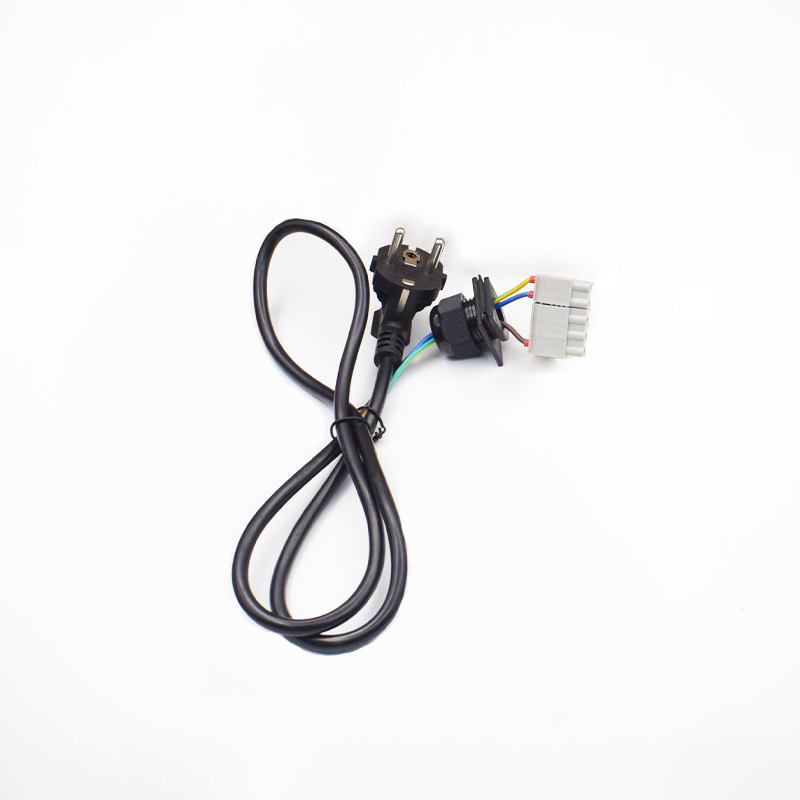

230V power plug (single-phase) with 1m power cable

For FC series of IDO

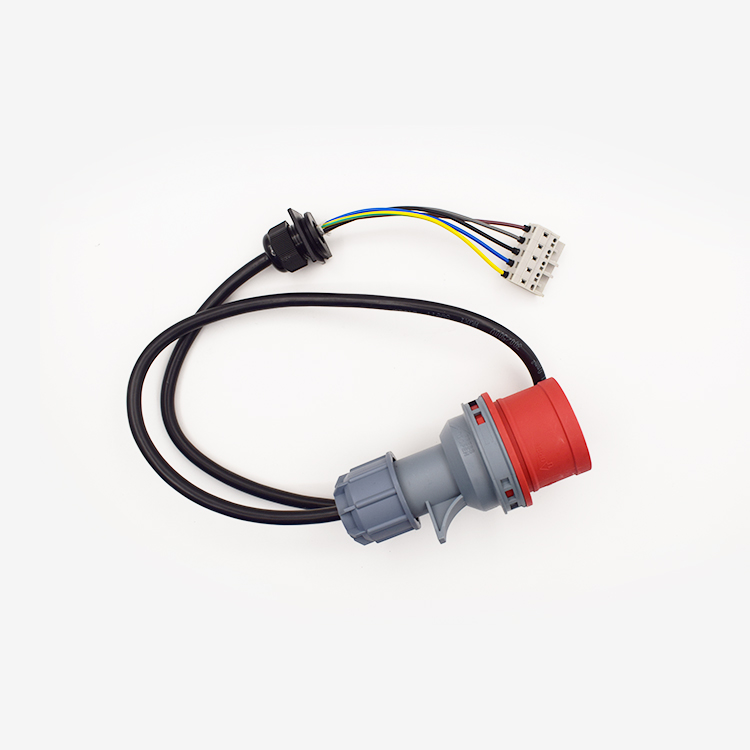

380V power plug (Three-phase) with 1m power cable

For FC series of IDO

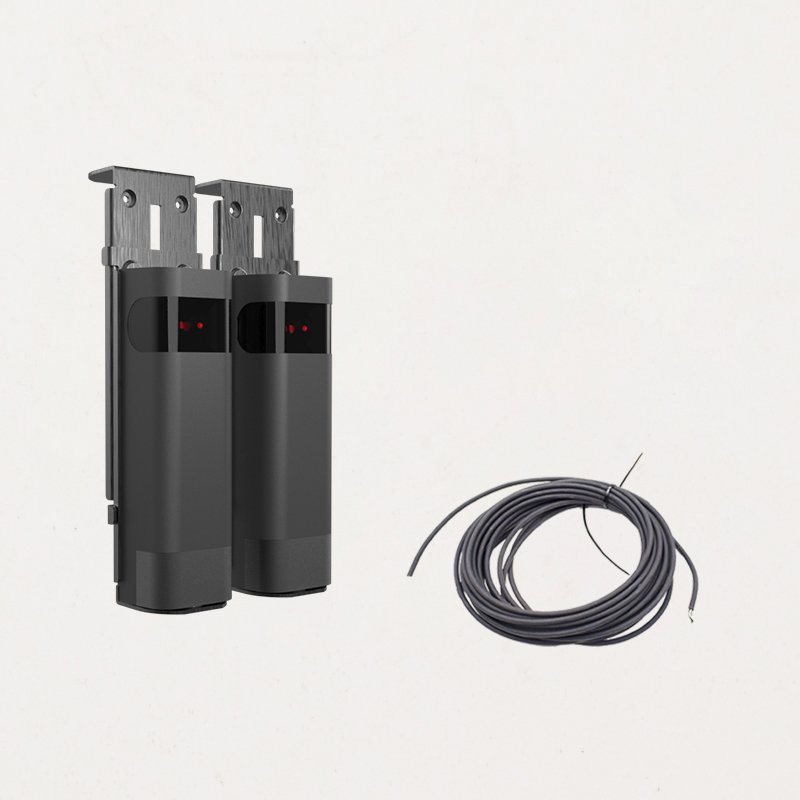

Power supply:    12/24V AC DC

Limit power supply:    18-35V DC, 15-28V AC

Signal range(Max):    20 meters

Transmitting power adjustable:    Yes

Adjustable Angle for Tx and Rx:    Horizontally (-90 ° ~  +90 °)

NC/NO contact:    Adjustable

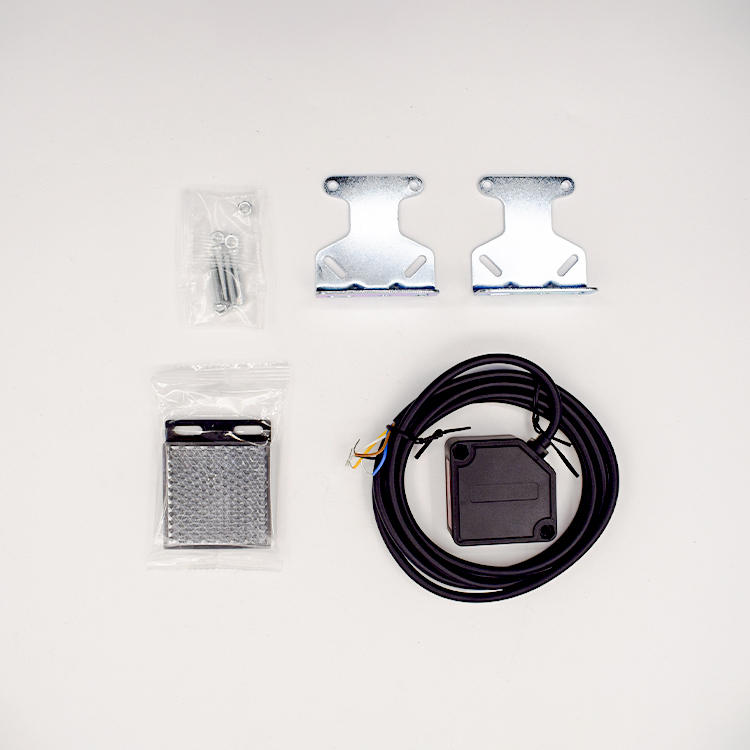

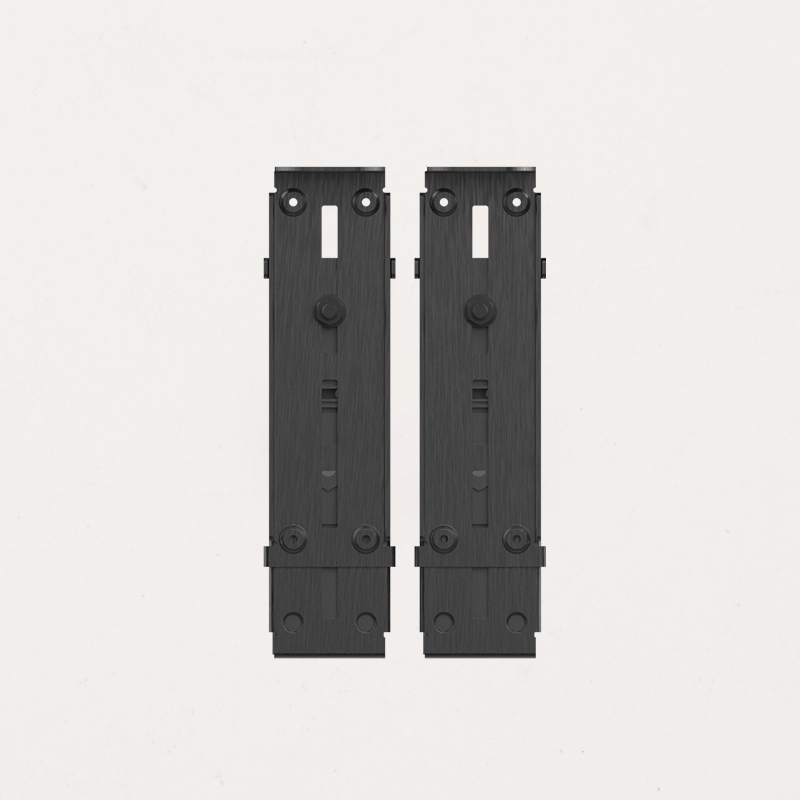

Mounting adjustable bracket:    Included(1 pair)

Wire for TX and RX:    Included(10mx2)

IP grade:    IP 65

Operating temperature:     -20ºC - + 70ºC

DC12-24V

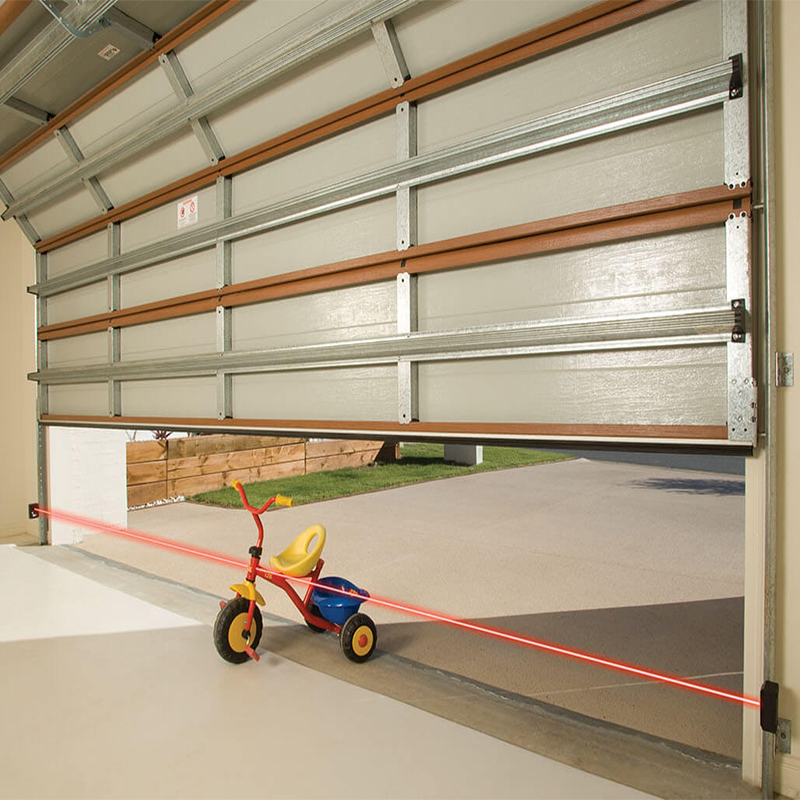

650nm red laser

Suppress switch interference from highly reflective objects

Optical safety edge with spring cable for industrial doors

Voltage: DC12-24V

Power consumption: Below 6mA

Detection distance: 0.5m-10m

Error distance: Less than 10% of detection distance

Detect object: Translucent/Non-transparent ojects

Physical dimension: 37*13mm

IP grade: IP67

Operating temperature: -20℃ - +60℃

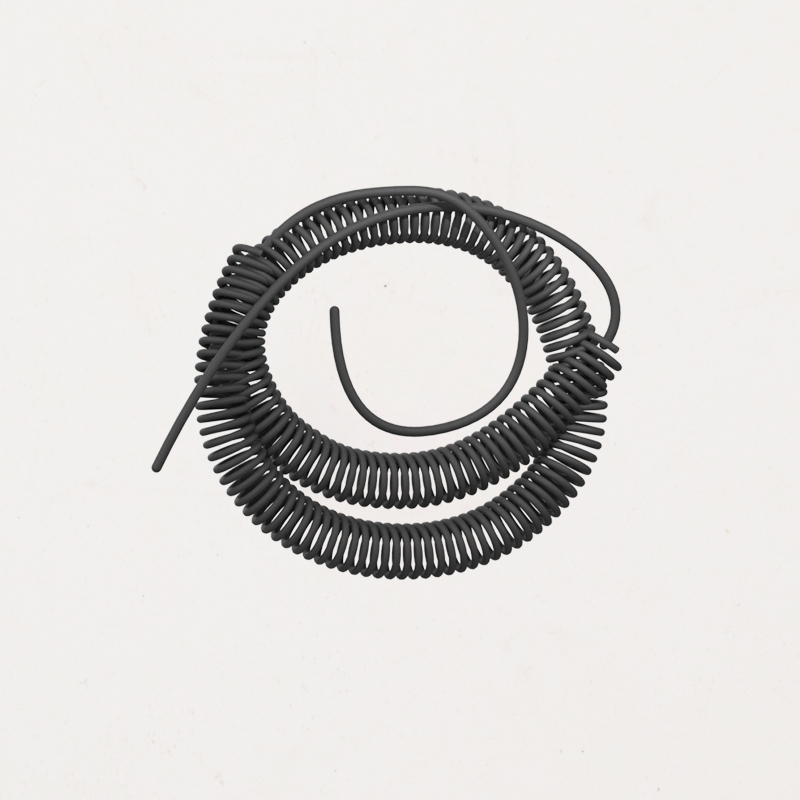

Optional: 4 & 5 wires spring cable

Optional: 3.5m & 5.5m spiral cable

Optional: optical edge sensors set(TX 6m / 10m cable, RX 1m cable)

For wicket door

trio-frequency technology for anti-interference

Magnetic sensor, contact-free magnetic detector

Height adjustable mounting base for the various wicket door frame

4W-SPC-3.5, 4Wires，0.25mm2 0.3m / 3.5m/ 1.6m for 5m height doors

4W-SPC-5.5, 4Wires，0.25mm2  0.3m / 5.5m/ 1.6m for 7m height doors

5W-SPC-3.5, 5Wires，0.25mm2 0.3m / 3.5m/ 1.6m for 5m height doors

5W-SPC-5.5, 5Wires，0.25mm2  0.3m / 5.5m/ 1.6m for 7m height doors

Range:    1~15m

Operating voltage:    10~16VDC, resistant against voltage reversal

Current consumption:    40mA

Signal range:    O

Output:    Transistor-output, max. load 20mA, short-circuit-proof

Output-level:    Rectangular signal low: 0~1V high: 3~5V

Housing material:    Plastic ABS, Lexan, IR transparent

Wire material:    PUR, halogen free, acid- and oil-resistant

Wire length:    TX 6m, RX1m or TX10m, RX1m

IP grade:    IP 67

Operating temperature:    -20ºC - +70 º

One OSE-input

One SD-input

One SL-input

IP grade:    IP67

One OSE-input

Two SD-input

Two SL-input

IP grade:    IP67

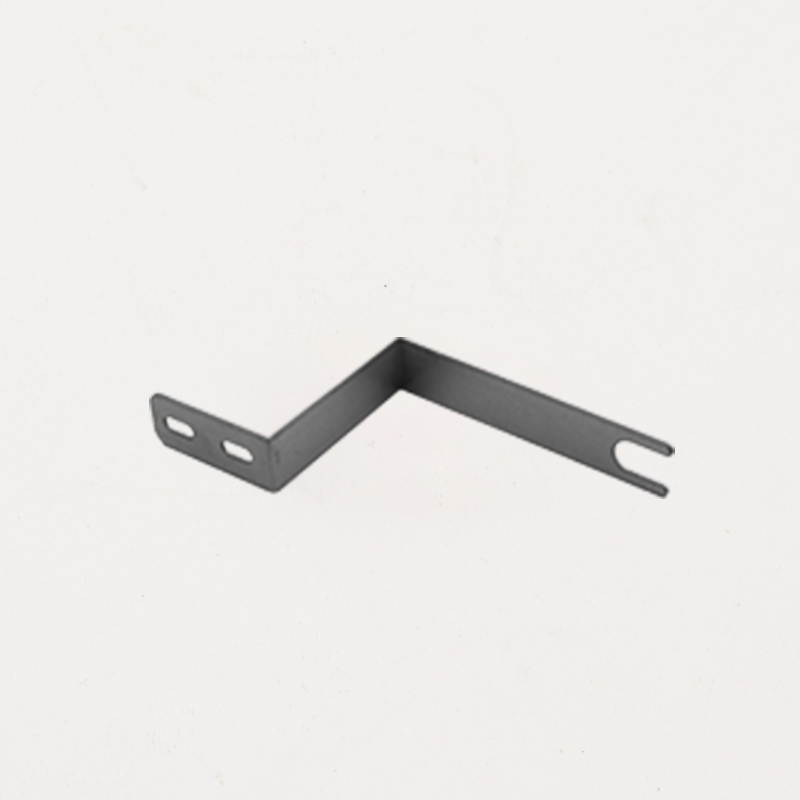

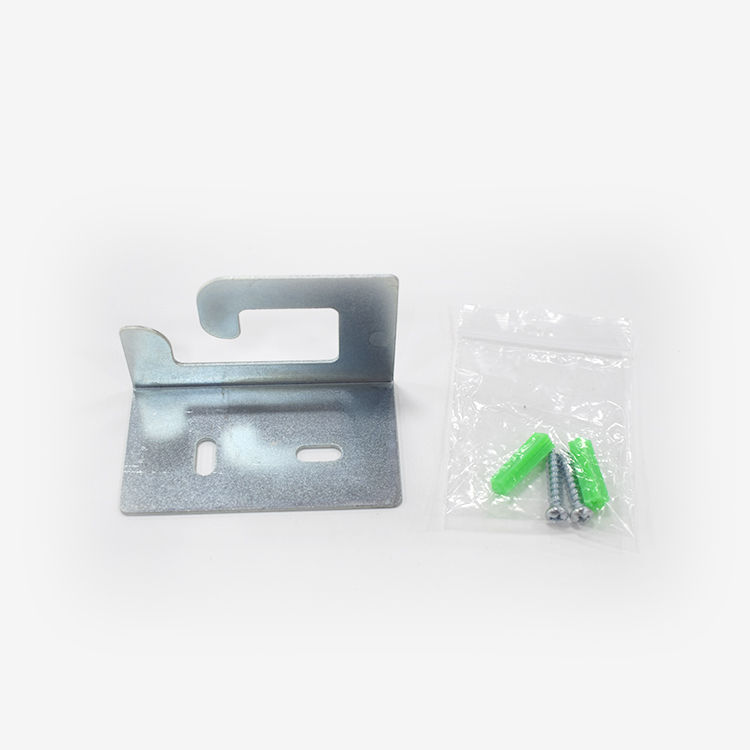

Bracket for spiral cable

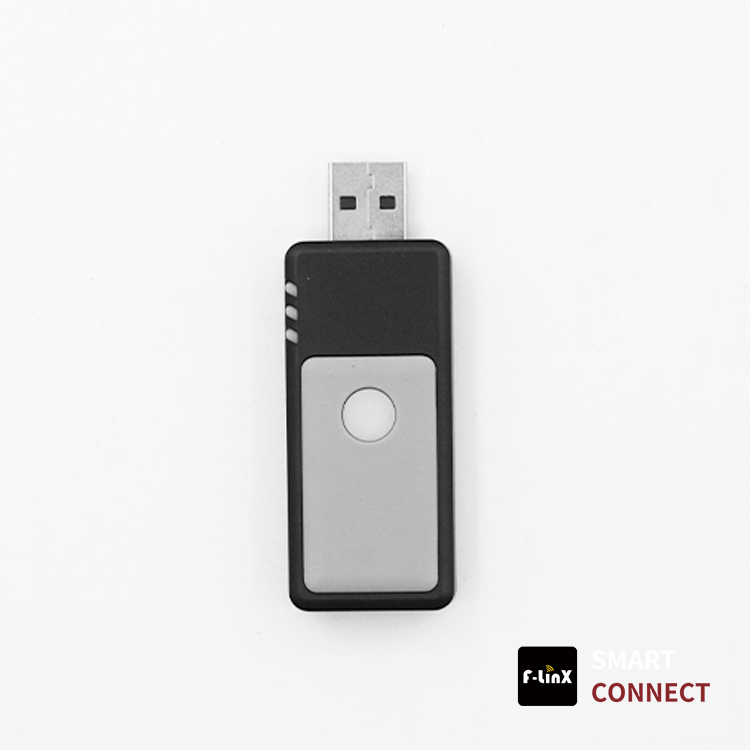

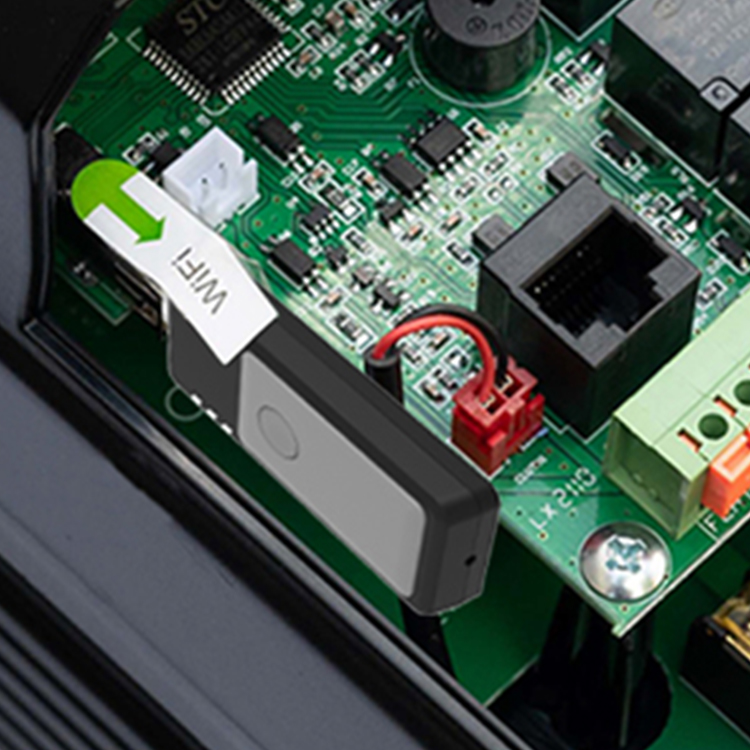

USB Wifi module for IDO and GDO

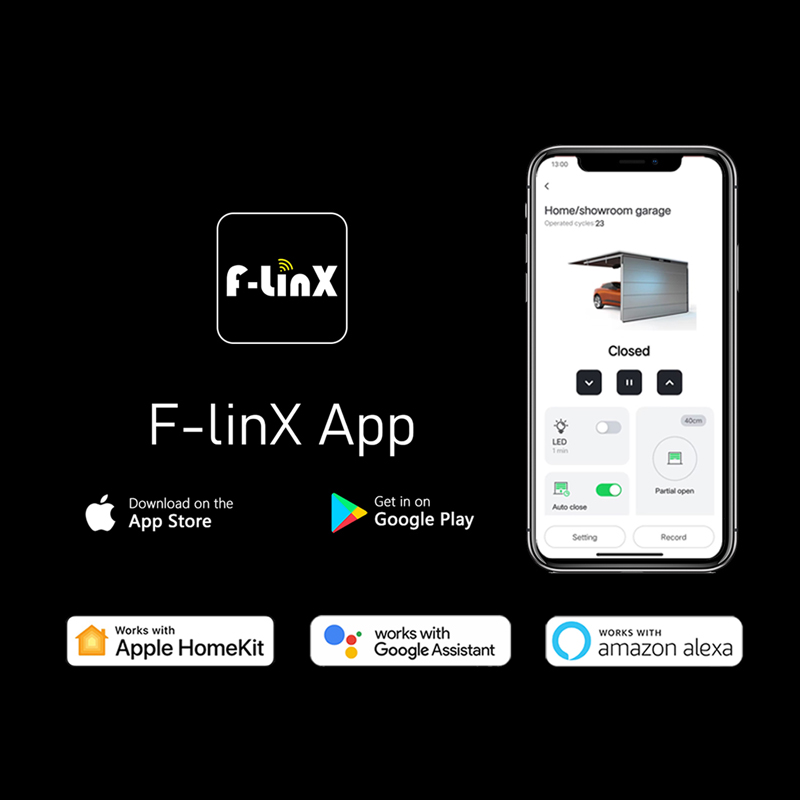

Work with latest version of F-linX APP for smart garage and Industry

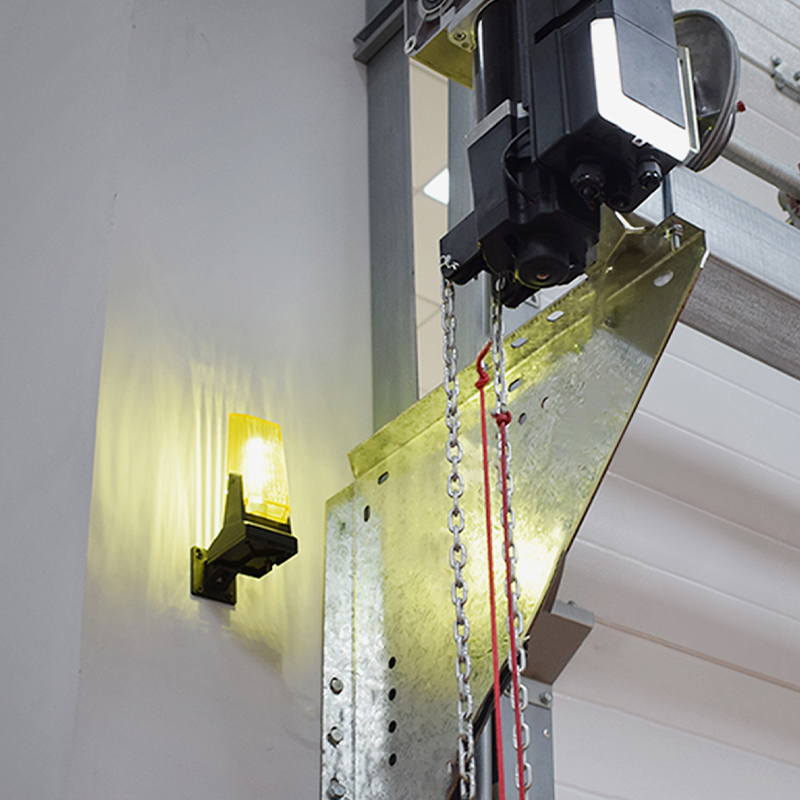

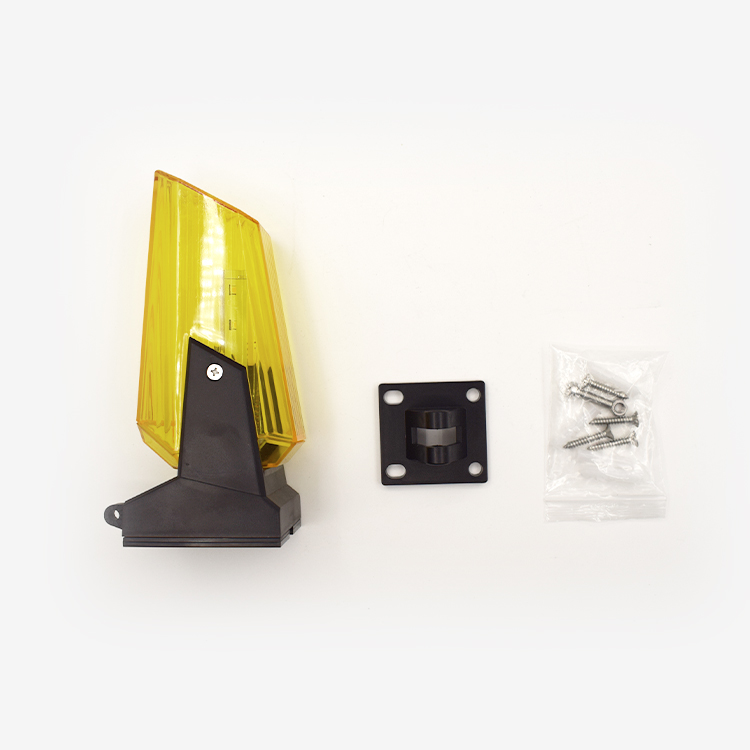

Warning light (yellow cover)

AC/DC 12-240V

Horizontal & Vertical installation supported

built-in antenna

flash mode,always-on mode

For IDO

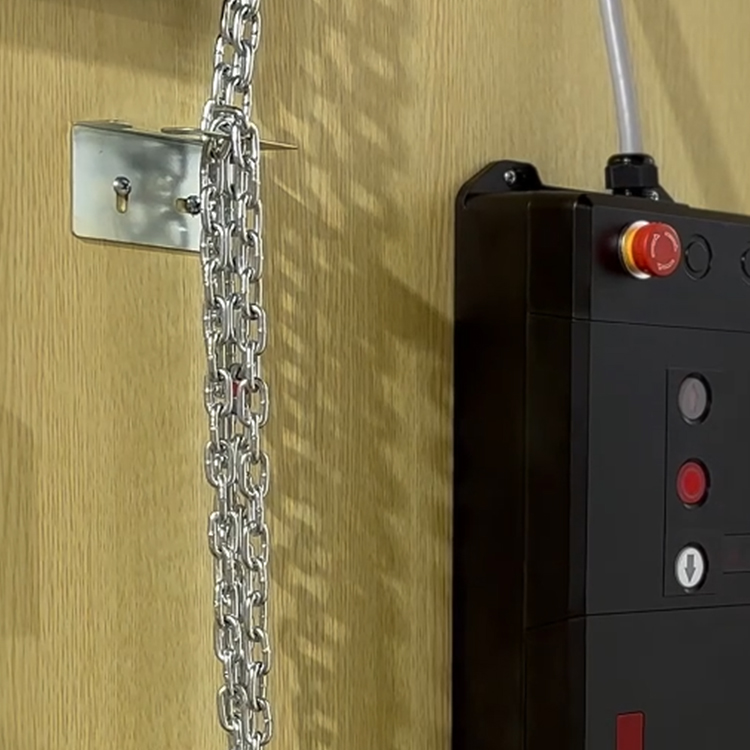

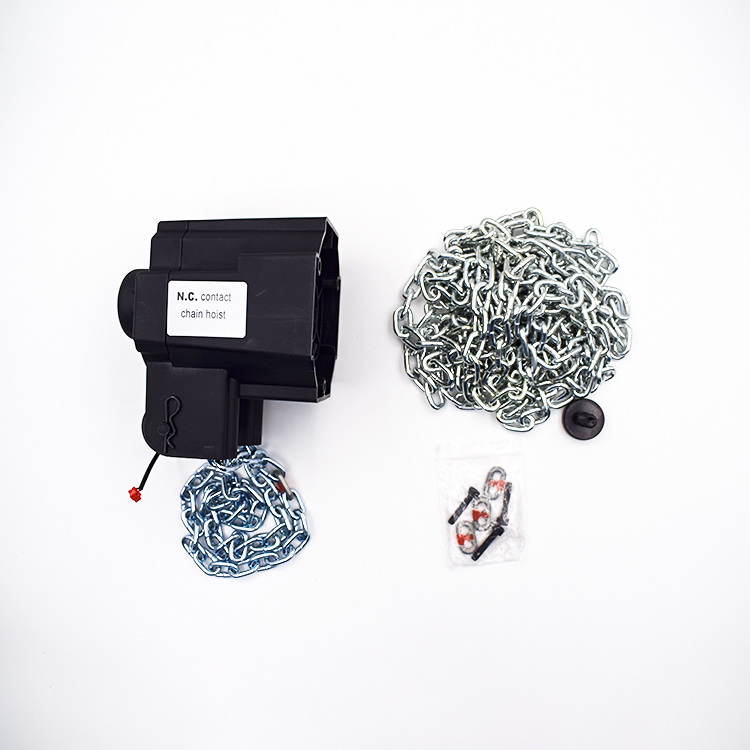

Chain hoist assy with 5m chain

For DC series（Base 35, 50）of IDO

Side mounted

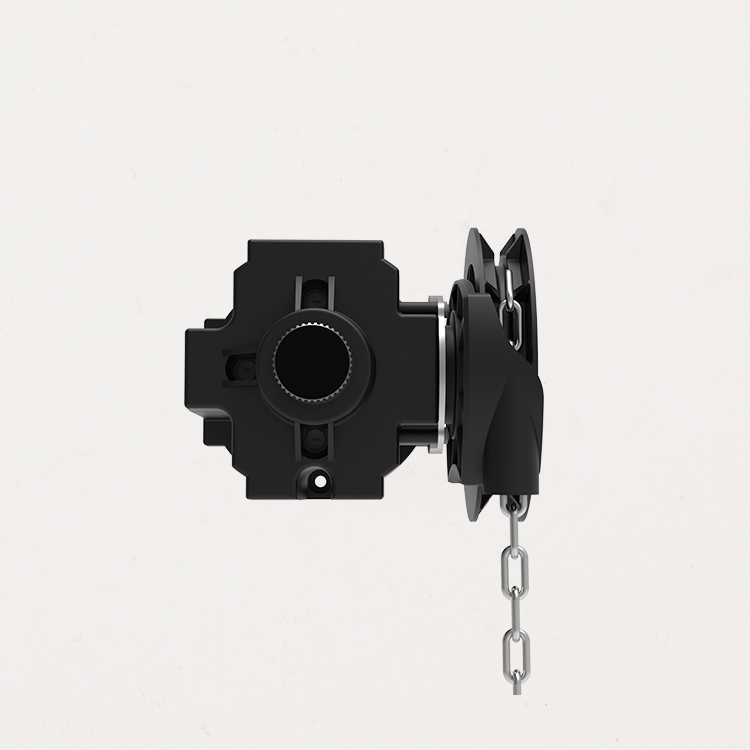

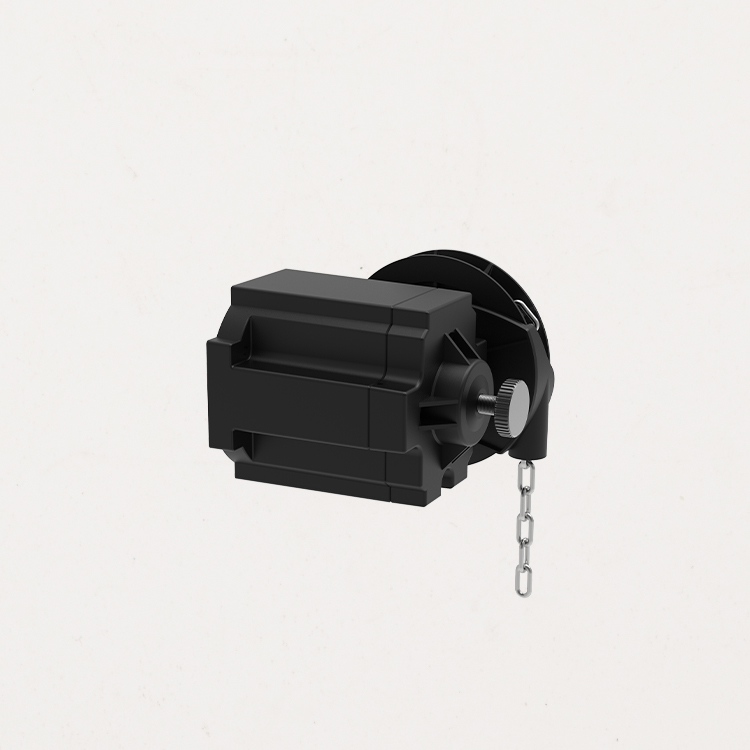

Chain hoist with 1m hand chain

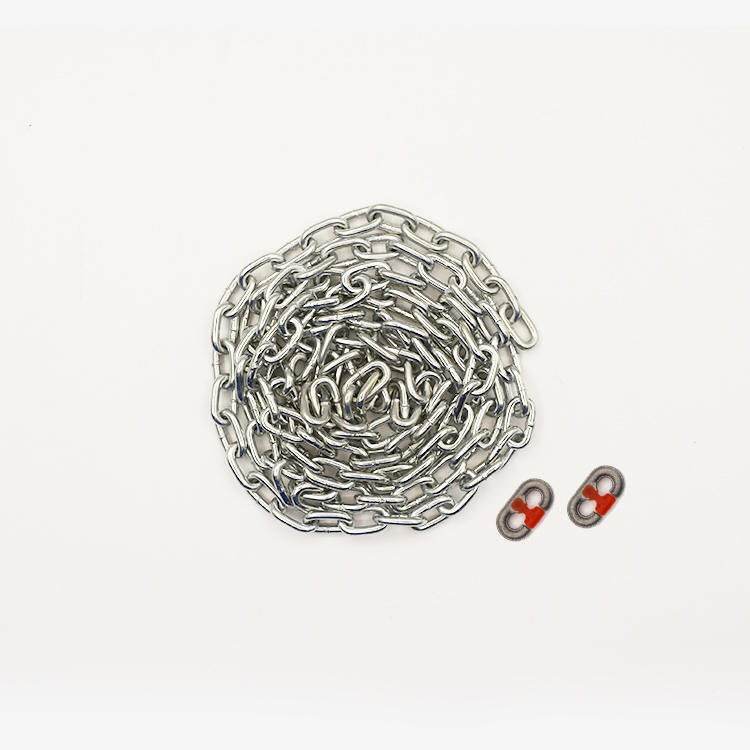

4m extension chain kit

For DC series（Base 35, 50）of IDO

Only for DC series（Base 35）of IDO

For all series of IDO

Reduces the gravity of the chain and helps to reset the chain hoist after using

For Industrial doors
