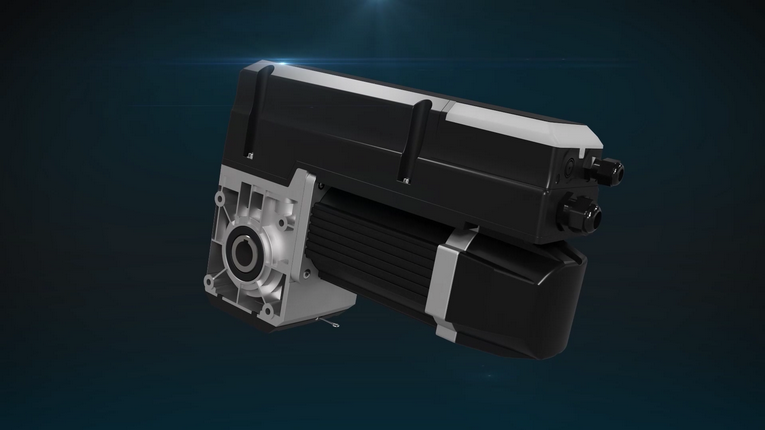

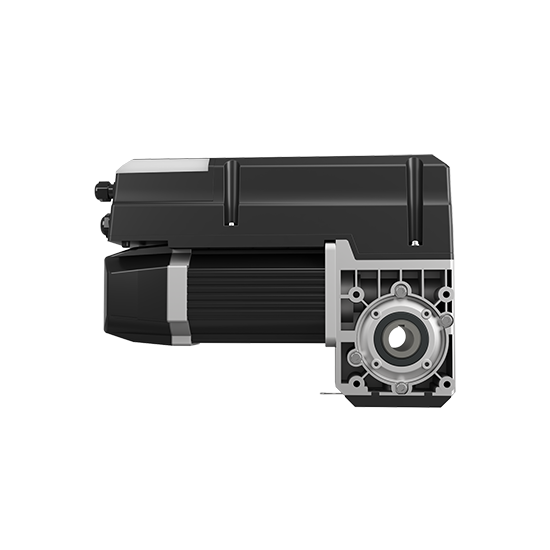

50Nm DC Industrial Door Drive FMK Motorized Inventory

Application

  • Standard lifting

    Size, Weight & Height:

    - Up to 22 m2

    - Up to 286 Kgs

    - Up to 6.5m

  • High lifting

    Size, Weight & Height:

    - Up to 22 m2

    - Up to 286 Kgs

    - Up to 6.5m

  • Vertical lifting

    Size, Weight & Height:

    - Up to 18 m2

    - Up to 234 Kgs

    - Up to 6.5m

STANDARD KIT

  • BASE50

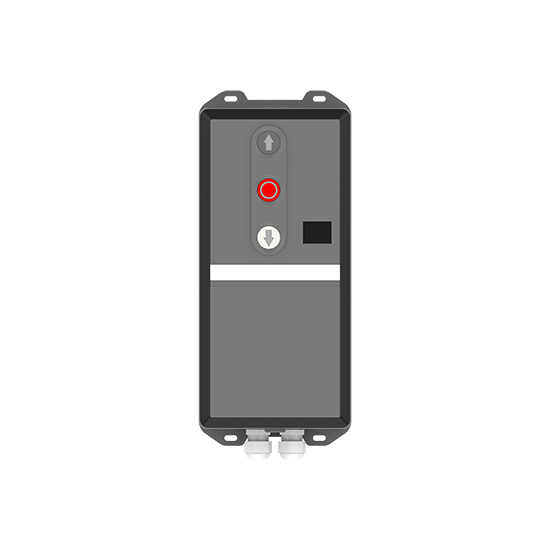

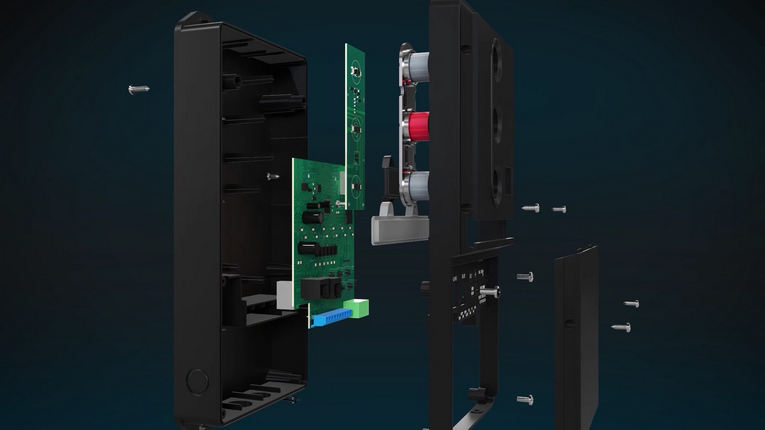

  • Control box

  • Connecting cable

  • Power cable

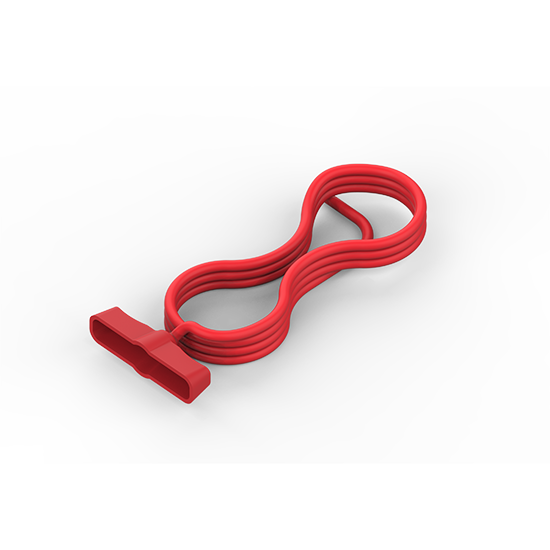

  • Release cord

  • Bracket

PARAMETER

Maximum output torque50Nm
Rated output torque35Nm
Input voltage110/220(1+10%)V 60Hz/50Hz 380v-420V
Control system24V DC
Motor power0.45KW
Static holding torque400Nm
Max. output speed24rpm - 32rpm
Operation limit turns (limit travel)15 turns of output shaft (max. 6.5m lifting height recommend)
Sleeve shaft diameter (standard)φ25.4mm
Keyway size6.3mm
Thermal protection temperature105℃
Continuous sound pressure level<70dB
Max. cycles per hour20
IP protection classIP54
Temperature range- 20℃ ~ + 60℃
Standard kitDrive motor & wired control box
Quick release with ropeIncluding

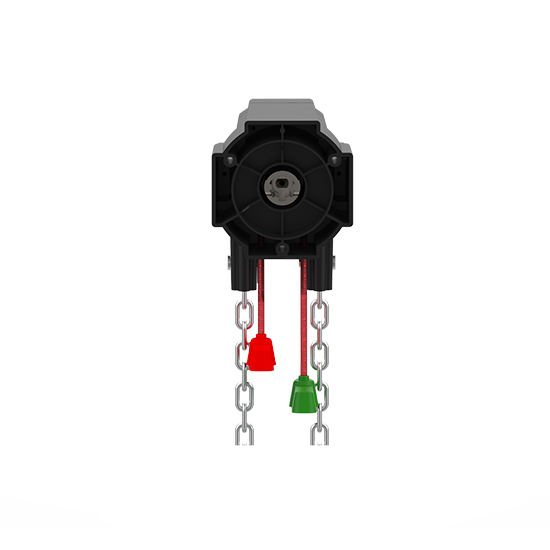

Chain hoist moduleOptional

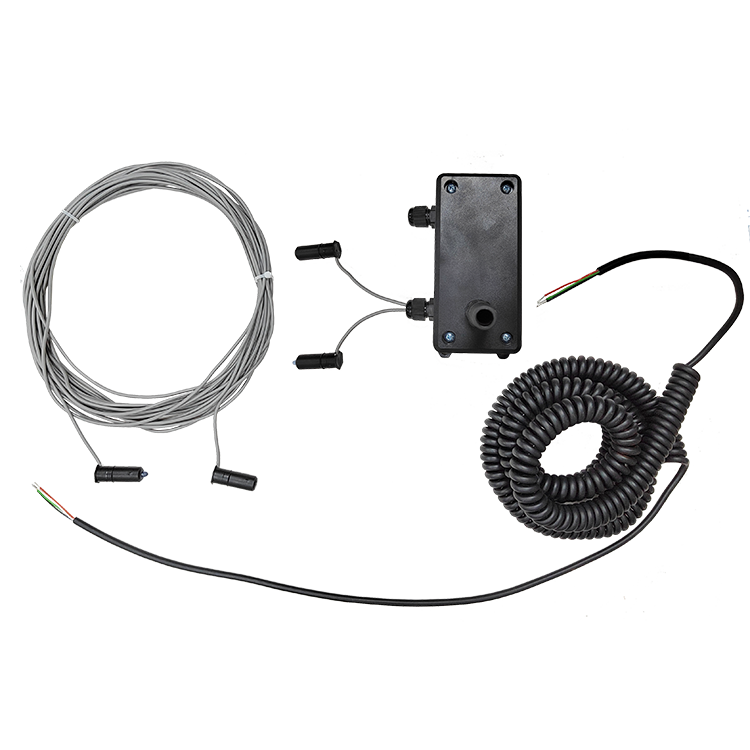

Optional edge sensors kit

Optional

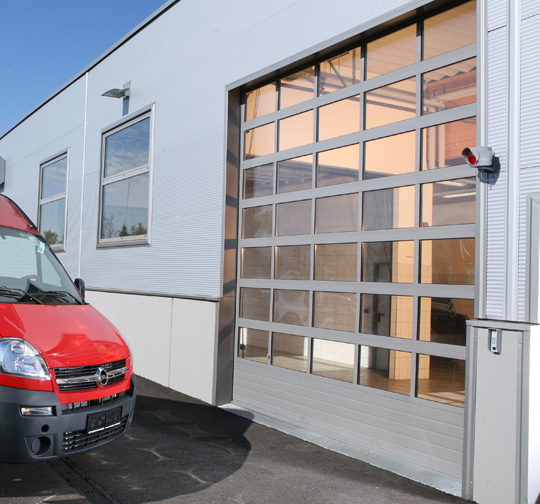

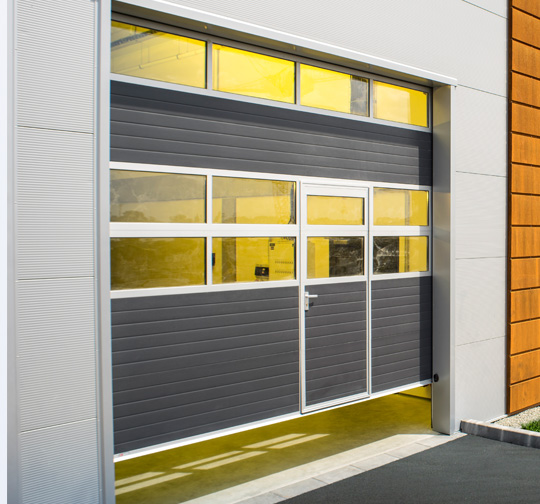

APPLICATION

PACKAGING SOLUTION

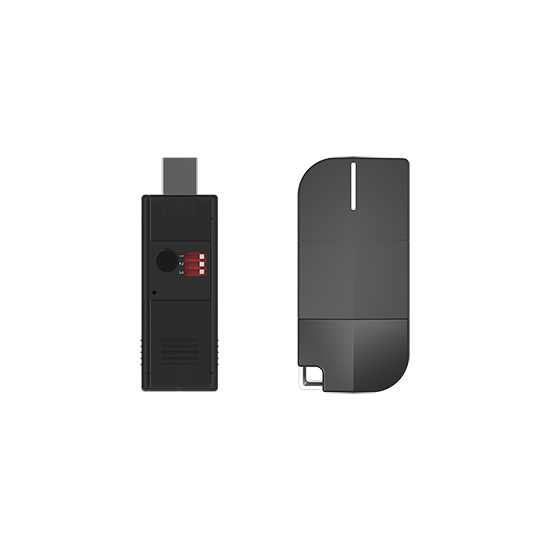

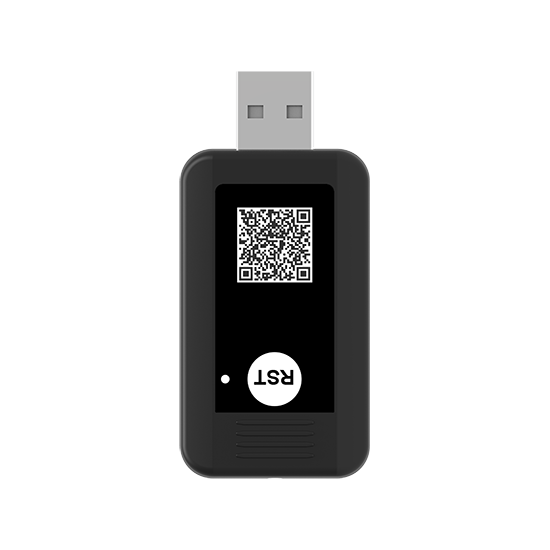

optional accessories
